IP65 Outdoor 32 inch LCD Kiosk , Floor Standing Touch Screen Kiosk 2500 nits
IP65 Outdoor 32 inch LCD Kiosk , Floor Standing Touch Screen Kiosk 2500 nits
IP65 Outdoor 32 inch LCD Kiosk , Floor Standing Touch Screen Kiosk 2500 nits
IP65 Outdoor 32 inch LCD Kiosk , Floor Standing Touch Screen Kiosk 2500 nits
Specifications
Brand Name :
Maxbright
Model Number :
T320EDCP
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50-100 unit / month
Delivery Time :
4~5 week
Packaging Details :
Pearl cotton shock absorption + carton + pallet packaging
Type :
a-Si active matrix TFT-LCD
Brightness :
2000 -2500 nits
Operating voltage :
AC100~240V 50 /60 HZ
Operating Temperature :
-30 --- 50 deg C
Power comsumption :
135 W
Application :
Outdoor advertising publication, interactive touch, info search
Input voltage :
AC100~240V 50 /60 HZ
Resolution :
1920 x 1080
Description

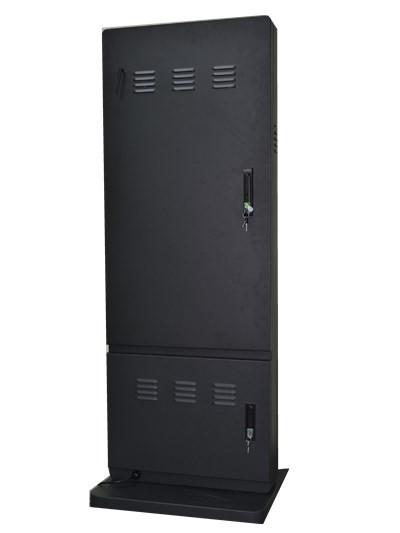

Maxbright 32" High Bright LED Backlight Enhanced Outdoor LCD Kiosk Model: T320EDCP

LED Array Backlight Enhanced

Model: T320EDCP

FEATURES:

Active Matrix TFT-LCD PD panel

High Brightness 2500 nits, Sunlight Viewable

1920 x 1080 Max. Resolution

Aspect Ratio: 9:16 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30～50o C

Media player box or mini PC for content display

Air-conditioner cooling for harsh environment option

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 698.4 x 392.85 mm in portrait mode
NATIVE RESOLUTION 1080 x 1920 RGB
PIXEL PITCH 0.36375(H) x 0.36375(V) mm
COLOR 16.7 M 8 bits depth
HORIZONTAL FREQ. 121.8KHz ~ 136.4KHz
VERTICAL FREQ.

95Hz ~ 121.2Hz
BRIGHTNESS 2000 - 2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 8000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 10ms G to G
INTERFACE VGA, HDMI x 3
MEDIA PLAYER Media Player (RK 3288 CPU) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 150W at 2500 nits level w/o Air-con
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1
OPERATING Mini PC: NDiS-1660C, 2GB DDR2, 4GB option
(option) 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi
3G or 4G module option

DIMENSION

WEIGHT

1750(H) x 590(W) x 180(D) w/o Air-Con,

115 Kg approx.
ENCLOSURE Iron sheet with outdoor powder painting
COOLING By cooling fans controlled by MCU for outdoor

ENVIRONMENTAL

Operating Temperature -20-50C,

Wide temp. -30-50C (option)
Operating Humidity 10%-85%
Storage Temperature -30-60C
Storage Humidity 5%-90%
WARRANTY

One year, limited for 2nd year
