Energy Saving High Brightness Digital Signage 1500 Nits Sunlight Viewable
Energy Saving High Brightness Digital Signage 1500 Nits Sunlight Viewable
Specifications
Brand Name :
Maxbright
Model Number :
Model：OF150EECL
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton packaging
Price :
Negotiable
Supply Ability :
300 pcs / month
Model：OF150EECL :
Model：OF150EECL
Description

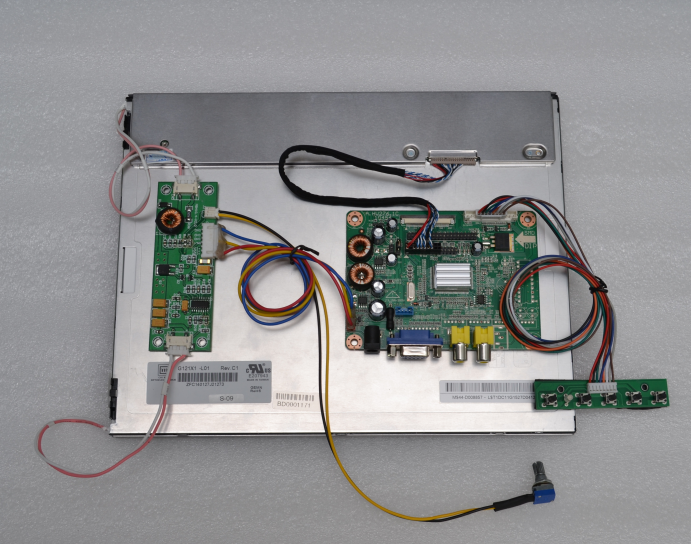

15” High Bright LCD Module Model:OF150EECL

LED Edge Type Backlight Enhanced

Model:OF150EECL

FEATURES:

Active Matrix TFT-LCD

High Brightness 1500 nits, Sunlight Viewable

1024 x 768 Max. Resolution

Aspect Ratio: 4:3

Wide Viewing Angles 160 deg (L/R)

Wide Operating Temp Range, -35 ～ 65o C

Main Specs of 15” High Bright Open Frame LCD Module

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 304.128 x 228.096 mm
NATIVE RESOLUTION 1024 x 768 RGB VGA to XGA resolution
PIXEL PITCH 0.297(H) x 0.297(V) mm
COLOR 8 bits 16.7M selectable
BACKLKGHT TYPE LED Edge type
BRIGHTNESS 1500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 700:1, Dynamic contrast ratio up to 10000:1
DIMMING

100:1 auto dimming by Light Sensor or

manually by + / - switch or POT
VIEWING ANGLE 80/80/80/80
RESPONSE TIME 8ms tr, 17ms tf
INTERFACE VGA and composite video
LIFETIME >45000 hrs
OPERATING VOLTAGE 12VDC, 3A
POWER CONSUMPTION 23Watt for 1500 nits exclude heater,
STANDBY MODE 1.2 Watt or less
ACCESSORIES VGA cable and AV cable (option)
POWER SUPPLY Power Adapter with Cord (option)
ENCLOSURE Aluminum milled fully sealed IP66 option

DIMENSION

WEIGHT

326.5(H) x 253.5(V) x 14.5(D) mm for panel

1.1 Kg approx.
OPERATING 12VDC Input Voltage
SHOCK 50G half sine wave 1 time for X, Y, Z direction
VIBRATION 1.5G 10-500HZ X,Y,Z directions 1.5mm,

ENVIRONMENTAL

(option)

Operating Temperature -20-65 deg C,

Wide temp. -35-65C with internal heater,
Operating Humidity 10%-85%
Storage Temperature -40-75C
Storage Humidity 5%-90%
WARRANTY One Year
