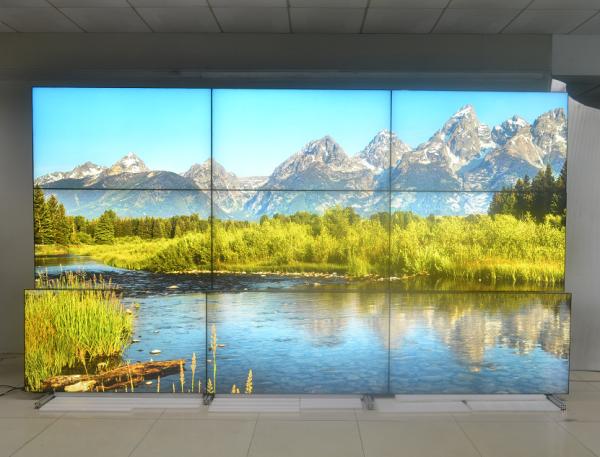

High Brightness Narrow Bezel LCD Video Wall 3 x 3 Wide Viewing Angles
High Brightness Narrow Bezel LCD Video Wall 3 x 3 Wide Viewing Angles
Specifications
Brand Name :
Maxbright
Model Number :
Model: OF550EDCP-VW-9
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets / month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton packaging + Pallet
Panel Type :
a-Si active matrix TFT-LCD
Resolution :
1920 x 1080
Brightness :
1800 - 2000 nits
Interface :
HDMI, DVI-in and DVI-out
Description

Maxbright 55" High Bright Video Wall Module Model : OF550EDCL-VW-9

LED array backlight enhanced

Model: OF550EDCL-VW-9

EATURES:

Active Matrix TFT-LCD Display, Supper Narrow Bezel

High Brightness 2000 nits, Sunlight Viewable

1920 x 1080 Max. Resolution

Aspect Ratio: 16:9, Landscape mode

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -10 ～ 50o C

Built-in Video Wall controller,Multi-input

Special enclosure Design for Video Wall construction

Main Specs of 55” HB Video Wall Module

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 1209.6(H) x 680.4(V) mm, landscape orientation
NATIVE RESOLUTION 1920 x 1080 RGB stripe arrangement
PIXEL PITCH 0.5415(H) x 0.5415(V) mm
COLOR 1.06 Billion, 10 bits
HORIZONTAL FREQ. 65KHz ~ 70KHz
VERTICAL FREQ. 47Hz ~ 53Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC)
BRIGHTNESS 1800-2000 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1400:1, Dynamic contrast ratio: 8000:1
DIMMING Auto-dimming by Light Sensor for whole system
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 12 msec typical
INTERFACE VGA, AV, HDMI, DVI-IN and DVI-OUT
CONTROLLER Video wall controller built-in, Daisy Chain model
REMOTE CONTROL Support for Full OSD Features via RS232-in and RS232-out
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 460W for 1800 nits, 510W for 2000 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, DVI, VGA, RS232 cable x 1
Management software
OPERATING Video Wall Management software, Win OS model
BEZEL A-A 3.4mm --- 1.9mm, totally 5.3mm

DIMENSION

WEIGHT

1215.2(H) x686.0(V) x 100(D) mm for module,

35 Kg approx. include built-in power units
MOUNTING 600 X400mm VESA STD
COOLING By cooling fans and temp sensor auto controlled
ENVIRONMENTAL Operating Temperature -10-45oC
,Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
