10.4” High Bright and NVIS Rugged Monitor odel : M104EECL-NV-R

with LED edge type backlight enhanced

Model :M104EECL-NV-R

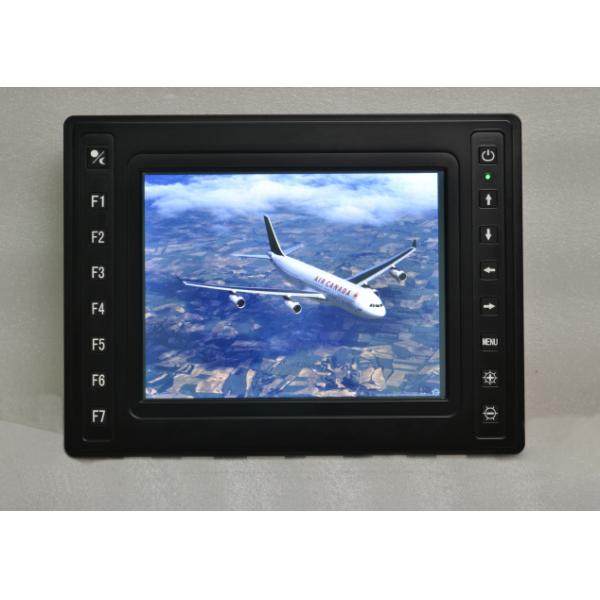

The Maxbright M104EECL-NV-R is a high bright and NVIS compatible 10.4″ TFT LCD to create a wide-temperature, ruggedized, day time and night vision flat panel monitor perfect for a variety of outdoor HMI and control applications in hazardous area locations.

Featuring edge type dual LED backlight system technology, the M104EECL-NV-R offers both high bright for day time sunlight readable and at night time with NVIS feature requirement by one key switchable, and impressive extended operating temperature range of -30° to +60°C with no internal heaters or cooling fans required. The front bezel of the monitor maintains NEMA 4/IP65 protection from sprayed liquids. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.

PRODUCT HIGHLIGHTS

• 10.4″ TFT LCD True Industrial-grade Panel
• Edge type dual LED Backlight system enhanced
• 1000 nits for day time, 0.17 - 15 nits for NVIS
• Deep Dimming Capabilities from 100% to 1% by OSD buttons
• Durable AR Vandal Glass-Surfaced Resistive Touchscreen
• VGA, RS232, Power Input by IP rated round connector
• Programmable function Keys for HMI and control system
• ITO coating and Heater glass for EMI seal and frost clearance
• NEMA 4/IP65 Front Bezel and other 5 enclosure sides
• –30°C to +60°C Wide Operating Temperature Range
• Optical bonding for contrast ratio improve and Anti-shock strengthen option
• Vibration-proof, fastener system which will not loosen regardless of seat torque.
• All internal connectors and cabling are well retained to combat vehicle shock and vibration
