20.1 Inch Rugged LCD Monitor 350 - 800 Nits Edge Type LED Backlight Enhanced
20.1 Inch Rugged LCD Monitor 350 - 800 Nits Edge Type LED Backlight Enhanced
Specifications
Brand Name :
Maxbright
Model Number :
Model : M201EEBL-BD-R
Certification :
Certificate of Approval
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton packaging
Price :
Negotiable
Supply Ability :
50 sets / month
Panel Type :
a-Si active matrix TFT-LCD
Resolution :
1600 x 1200
Brightness :
800 nits
Power Consumption :
40W
Operating Voltage :
100-230VAC, 18-36VDC option
Operating Temperature :
-20 - 60C
Description

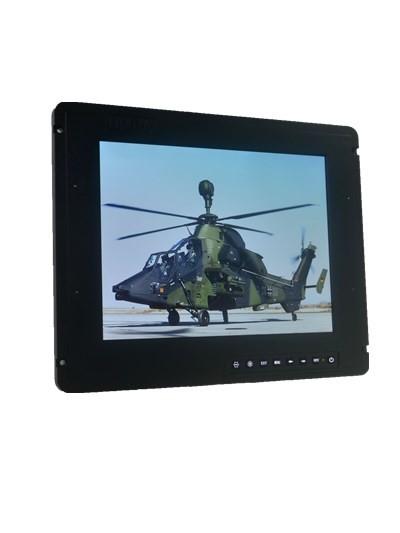

20.1” High Bright Rugged LCD Monitor Model :M201EEBL-BD-R

with LED edge type backlight enhanced

Model :M201EEBL-BD-R

The Maxbright M201EEBL-R is a high bright 20.1″ TFT LCD to create a wide-temperature, ruggedized, flat panel console monitor perfect for a variety of HMI and control applications in hazardous area locations.

Featuring edge type LED backlight technology, the M201EEBL-R offers an impressive extended operating temperature range of -20° to +60°C with no internal heaters or cooling fans required. The front bezel of the monitor maintains NEMA 4/IP65 protection from sprayed liquids. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.

PRODUCT HIGHLIGHTS

  • 20.1″ TFT LCD True Industrial-grade Panel
  • 350 - 800 nits, Edge type LED Backlight enhanced
  • Deep Dimming Capabilities from 100% to 1% by POT
  • Durable AR Vandal Glass-Surfaced Resistive Touchscreen
  • VGA, RS232, Power Input by IP rated round connector
  • ITO coating and Heater glass for EMI seal and frost clearance
  • NEMA 4/IP65 Front Bezel and other 4 enclosure sides
  • –20°C to +60°C Operating Temperature Range
  • Optical bonding for contrast ratio improve and Anti-shock strengthen option
  • Vibration-proof, fastener system which will not loosen regardless of seat torque.
  • All internal connectors and cabling are well retained to combat vehicle shock and vibration

Items Parameters
Active Area 408(W) × 306(V)mm
Brightness 800 cd/m² Manual Dimming from 100% to 1% by POT
Resolution 1600 × 1200 RGB
Interface DVI,VGA,RS232,Power Input
AR/Bonding AR glass / ITO coading with Optical Bonding
Touch Screen 5-wire Resistive Touch with RS-232 Controller
Power Consumption 40W at highest brightness level
Operating Voltage 100 - 230 VAC, 18-36VDC voltage input available
Operating Temperature -20°C - 60°C
EMC CE102 10KHz–10MHz RE102 10KHz–1GHz or MIL-STD-461E
Anti-Shack and Vibration Design Satisfy GJB 150.16A GJB 150.18A or MIL-STD 810 Standard
