49 Inch Double Sided Digital Signage , Store Window Advertising Signs M490EDCP-DF-SW
49 Inch Double Sided Digital Signage , Store Window Advertising Signs M490EDCP-DF-SW
49 Inch Double Sided Digital Signage , Store Window Advertising Signs M490EDCP-DF-SW
49 Inch Double Sided Digital Signage , Store Window Advertising Signs M490EDCP-DF-SW
Specifications
Brand Name :
Maxbright
Model Number :
M490EDCP-DF-SW
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + wood frame packaging
Panel Type :
a-Si Active Matrix TFT-LCD
Resolution :
1920 x 1080
Brightness :
2500 nits / 500 nits
Power Consumption :
380W for window panel, 80 for indoor panel
Operating Temperature :
-30C - 50C
Operating Voltage :
100 - 240 VAC 50-60Hz
Description

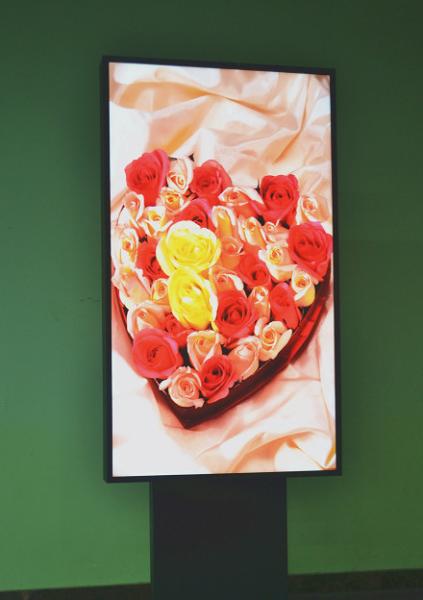

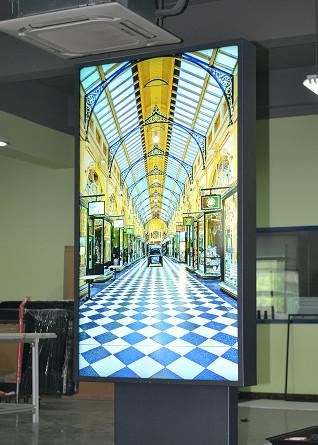

Maxbright 49" High Bright Digital Signage, Store Window E-poster M490EDCP-DF-SW

LED Array Backlight Enhanced

Model: M490EDCP-DF-SW

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500 nits / 500 nits

1920 x 1080 Max. Resolution

Aspect Ratio: 9:16 in portrait mode

Wide Viewing Angles 178 deg (L/R/U/D)

Waterproof and Fashion Design

Media player box or mini PC Built-in (option)

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 632.5(H)x1096.2(V)mm Portrait orientation
NATIVE RESOLUTION 1920 x 1080 RGB WUXGA
PIXEL PITCH 0.55926(H) x 0.55926(V) mm
COLOR 16.7 M, 8 bits
HORIZONTAL FREQ. 57.3KHz ~ 70KHz(HDMI)
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC)
BRIGHTNESS 2500 cd/m2 for Window face, 500 cd/ m2 for indoor face
CONTRAST RATIO 1100:1, Dynamic Contrast: 10,000:1
DIMMING Auto Dimming by Light Sensor, 100% to 10%
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 12 msec typical
INTERFACE VGA, HDMI x 2,
MEDIA PLAYER Media Player (RK3288 Quad-core) 2G/8G memory
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 380W for 2500 nits panel, 80 for 500 nits panel
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA, RJ45 cable x 1
OPERATING Mini PC: D2550 Quad-Core 1.86GHz, 2GB DDR2
(option) 500 HDD, 5 x USB ports, 1 x RJ45, Wi-Fi
TOUCH G+G Projected CAP, 10 points with USB controller(option)
DIMENSION 1500(H) x 746(W) x 80(D) mm
Without Hang Mount Bracket or Floor Stand
WEIGHT 110 Kg approx net weight, 125Kg gross weight
ENCLOSURE Iron Sheet folded, Outdoor Powder Coating,
COOLING Cooling fans controlled by intelligent MCU controller
TEMPERATURE. PROTECT High Temperature Protection for 60 oC or over
ENVIRONMENTAL Operating Temperature -20-40oC,
Wide temp. -30-45oC (option)
Operating Humidity 10%-80%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
Warranty One year

49 Inch Double Sided Digital Signage , Store Window Advertising Signs M490EDCP-DF-SW
