Store Window Double Sided LCD Display 55 High Brightness 2500 nits + 700 nits
Store Window Double Sided LCD Display 55 High Brightness 2500 nits + 700 nits
Store Window Double Sided LCD Display 55 High Brightness 2500 nits + 700 nits
Store Window Double Sided LCD Display 55 High Brightness 2500 nits + 700 nits
Specifications
Brand Name :
Maxbright
Model Number :
M550EDCP-DF
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton + pallet packaging
Price :
Negotiable
Panel Type :
a-Si Active Matrix TFT-LCD
Resolution :
1920 x 1080
Brightness :
2500 nits for Street Side, 700 nits for Indoor Side
Power Consumption :
100W for 700 nits panel, 380W for 2500 nits panel
Operating Temperature :
-10C - 40C
Operating Voltage :
100 - 240 VAC 50-60Hz
Description

Maxbright 55" High Bright Shop Window Signage E-poster M550EDCP-DF

LED Array Backlight Enhanced

Model: M550EDCP-DF

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500 nits + 700 nits

1920 x 1080 Max. Resolution

Aspect Ratio: 9:16 in portrait mode

Wide Viewing Angles 178 deg (L/R/U/D)

Waterproof and Fashion Design

Media player box or mini PC Built-in (option)

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 1209.6 x 680.4mm Portrait orientation
NATIVE RESOLUTION 1920 x 1080 RGB WUXGA
PIXEL PITCH 0.630(H) x 0.630(V) mm
COLOR 16.7 M, 8 bits
HORIZONTAL FREQ. 15KHz ~ 135KHz(HDMI)
VERTICAL FREQ. 24Hz ~ 75Hz(HDMI)
BRIGHTNESS 2500 cd/m2 for Window face, 700 cd/ m2 for indoor face
CONTRAST RATIO 1300:1, Dynamic Contrast: 12,000:1
DIMMING Auto Dimming by Light Sensor, 100% to 10%
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 4.5msec typical
INTERFACE VGA, HDMI x 2,
MEDIA PLAYER Media Player (RK3288 Quad-core) 2G/8G memory
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 100W for 700 nits panel, 380W for 2500 nits panel
STANDBY MODE 3 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA, RJ45 cable x 1
OPERATING Mini PC: D2550 Quad-Core 1.86GHz, 2GB DDR2
(option) 500 HDD, 5 x USB ports, 1 x RJ45, Wi-Fi
TOUCH G+G PCAP, 10 points with USB controller(option)

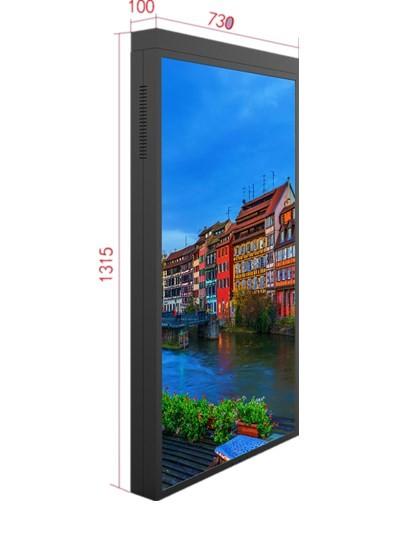

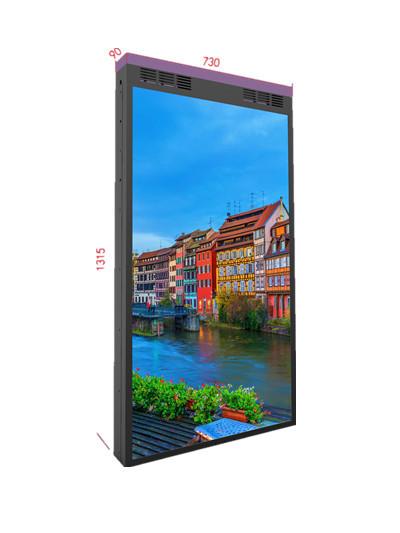

DIMENSION 1318(H) x 730(W) x 100(D) mm
Without Hang Mount Bracket
WEIGHT 52 Kg approx net weight, 62Kg gross weight
ENCLOSURE Iron Sheet folded, Outdoor Powder Coating,
COOLING By cooling fans on top and intelligent controller
TEMPERATURE. PROTECT High Temperature Protection for 60 oC or over
ENVIRONMENTAL Operating Temperature -20-40oC,
Wide temp. -20-45oC (option)
Operating Humidity 10%-80%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
Warranty One year
