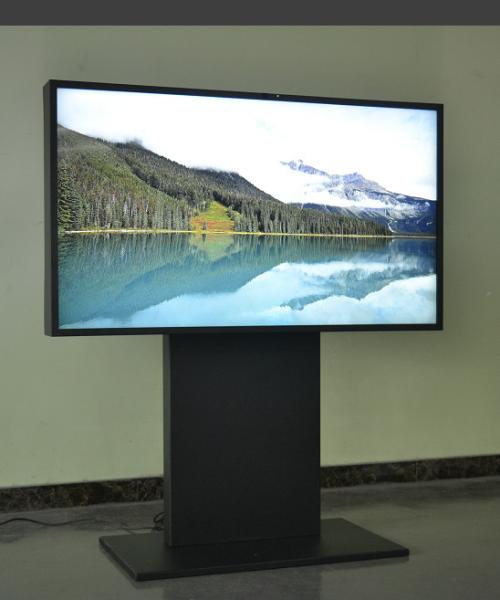

65 inch Double Sided Digital Signage 4K High Bright 2500 nits LED Array Backlight Enhanced
65 inch Double Sided Digital Signage 4K High Bright 2500 nits LED Array Backlight Enhanced
65 inch Double Sided Digital Signage 4K High Bright 2500 nits LED Array Backlight Enhanced
65 inch Double Sided Digital Signage 4K High Bright 2500 nits LED Array Backlight Enhanced
Specifications
Brand Name :
Maxbright
Model Number :
M650EDCL-DF
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton + pallet packaging
Panel Type :
a-Si Active Matrix TFT-LCD
Resolution :
3840 x 2160 RGB (4K) UHD
Brightness :
2500 nits + 700 nits
Power Consumption :
520W for 2500 ntis panel, 100W for 700 nits panel
Operating Temperature :
-20C - 50C
Operating Voltage :
100 - 240 VAC 50-60Hz
Description

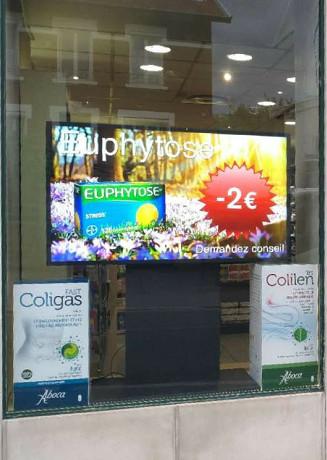

Maxbright 65 inch High Bright Double Sided Shop Window Signage Display M650EDCL-DF-SW

LED Array Backlight Enhanced

Model: M650EDCL-DF-SW

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500 nits + 700 nits

3840 x 2160 Max. Resolution

Aspect Ratio: 16:9 in Landscape mode

Wide Viewing Angles 178 deg (L/R/U/D)

Waterproof and Fashion Design

Media player box or mini PC Built-in (option)

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 1428.48 x 803.52mm Landscape orientation
NATIVE RESOLUTION 3840 x 2160 RGB QWUXGA
PIXEL PITCH 0.372(H) x 0.372(V) mm
COLOR 1.073 Billon, 10 bits
HORIZONTAL FREQ. 121.8KHz ~ 140KHz(HDMI)
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL)
BRIGHTNESS 2500 cd/m2 for Window face, 700 cd/ m2 for indoor face
CONTRAST RATIO 1100:1, Dynamic Contrast: 10,000:1
DIMMING Auto Dimming by Light Sensor, 100% to 10%
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 8 msec typical
INTERFACE VGA, HDMI x 2,
MEDIA PLAYER Media Player (RK3288 Quad-core) 2G/8G memory
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE 100 ~ 240VAC 50/60Hz
POWER CONSUMPTION 100W for 700 nits panel, 520W for 2500 nits panel
STANDBY MODE 10 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA, RJ45 cable x 1
OPERATING Mini PC: D2550 Quad-Core 1.86GHz, 2GB DDR2
(option) 500 HDD, 5 x USB ports, 1 x RJ45, Wi-Fi
TOUCH G+G Projective CAP, 10 points with USB controller(option)
DIMENSION 1910(H) x 990(W) x 160(D) mm
Without Hang Mount Bracket
WEIGHT 112 Kg approx N. weight, 130Kg G. weight
ENCLOSURE Iron Sheet folded, Outdoor Powder Coating,
COOLING By cooling fans controlled by intelligent MCU controller
TEMPERATURE. PROTECT High Temperature Protection for 60 oC or over
ENVIRONMENTAL Operating Temperature -20-45oC,
Wide temp. -25-50oC (option)
Operating Humidity 10%-80%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
Warranty One year
