High Bright 2500 nits Outdoor Digital Signage 65 Sunlight readable IP65 E-poster
High Bright 2500 nits Outdoor Digital Signage 65 Sunlight readable IP65 E-poster
Specifications
Brand Name :
Maxbright
Model Number :
M650EDCP-i
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton + pallet packaging
Price :
Negotiable
Panel :
a-Si Active Matrix
Resolution :
3840 x 2160
Brightness :
2000 - 2500 nits
Power Consumption :
550W(4K)
Operating voltage :
100 - 240 VAC 50/60Hz
Operating temperature :
-30C -- 50C
Description

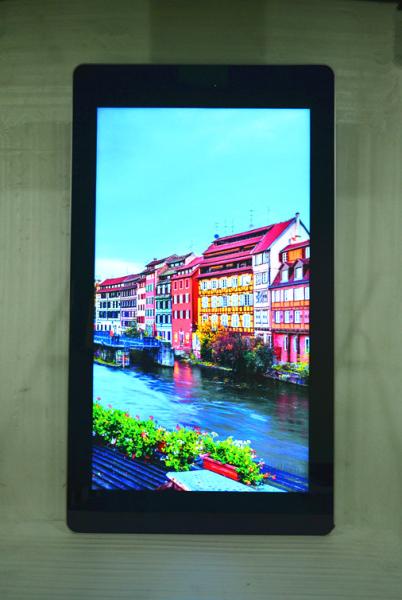

Maxbright 65" High Bright Outdoor LCD E-poster Model:M650EDCP-i-4K

LED array backlight enhanced

Model:M650EDCP-i-4K

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000-2500 nits, Sunlight Viewable

3840 x 2160 Max. Resolution

Aspect Ratio: 9:16 in Portrait mode enabled

Wide Viewing Angles 178 deg. (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player or mini-PC for content playback

Waterproof IP54 enclosure

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 803.52 x 1428.48 mm portrait orientation
NATIVE RESOLUTION 2160 x 3840 RGB, QWUXGA Resolution
PIXEL PITCH 0.372(H) x 0.372(V) mm
COLOR 1.073 Million, 10 bits
HORIZONTAL FREQ. 121.8KHz ~ 140KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 9000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 8 msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK3288 Android OS ) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 400W for 2000 nits, 550W for 2500 nits
STANDBY MODE 3 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1

OPERATING

(option)

 Mini PC: D2550 Dual-core 1.86GHz, 4GB DDR3, 500G HHD, 5 x USB ports, 1 x RJ45
1 x HDMI, 2 X RS232, Window OS

DIMENSION

WEIGHT

1910(H) x 990(W) x 140(D)mm

112 Kg approx
Waterproof IP54 Enclosure
COOLING By cooling fans controlled by MCU
400W Mini air-condition option for Harsh outdoor
ENVIRONMENTAL

Operating Temperature -20-45oC,

Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
