75 inch Outdoor LCD Digital Signage 3000 nits High Bright Waterproof IP65
75 inch Outdoor LCD Digital Signage 3000 nits High Bright Waterproof IP65
75 inch Outdoor LCD Digital Signage 3000 nits High Bright Waterproof IP65
75 inch Outdoor LCD Digital Signage 3000 nits High Bright Waterproof IP65
Specifications
Brand Name :
Maxbright
Model Number :
M750EDCL
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / month
Delivery Time :
5~6 weeks
Packaging Details :
Pearl cotton shock absorption + wood frame packaging
Panel :
a-Si Active Matrix TFT-LCD
Resolution :
3840 x 2160 RGB (4K) UHD
Brightness :
2500 - 3000 nits
Power Consumption :
860W
Operating voltage :
100 - 240 VAC 50/60Hz
Operating temperature :
-20C -- 50C
Description

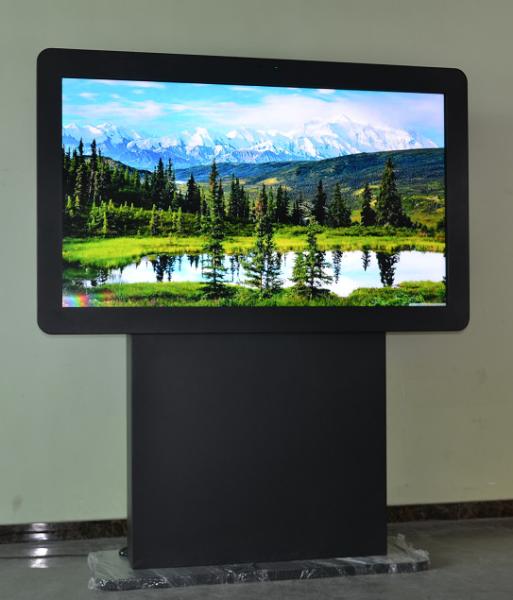

Maxbright 75" High Brightness Outdoor LCD Digital Signage Model:M750EDCL

LED Array Backlight Enhanced

Model:M750EDCL

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500-3000 nits, Sunlight Viewable

QWUXGA 3840 x 2160 Max. Resolution

Aspect Ratio: 16:9 Landscape mode

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -20 ～ 45o C

Media player box or mini PC for content playback

Waterproof IP54 enclosure

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 1649.664 x 927.936mm, landscape enable
NATIVE RESOLUTION 3840 x 2160 RGB
PIXEL PITCH 0.429(H) x 0.429(V) mm
COLOR 1.07 Bilion, 10 bits
HORIZONTAL FREQ. 110KHz ~ 139.5KHz
VERTICAL FREQ. 98Hz ~ 122Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2500-3000 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1200:1, Dynamic contrast ratio: 5000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 8msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK 3288) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 860 Watt
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1
OPERATING Mini PC: D2550 Dual Core 1.8GHz, 2GB DDR2
(option) 500GB HDD, 5 x USB ports, 1 x RJ45, WiFi (option)

DIMENSION

WEIGHT

1906 (L) x 1308(H) x 260(D) mm, (without air-con)

240 Kg approx (without air-con)
Waterproof IP54 Enclosure option
COOLING Cooling fans controlled by MCU for normal-outdoor
1000W embedded air-con option for harsh outdoor

ENVIRONMENTAL

OPTION

Operating Temperature -20-45oC,

Wide temp. -30-50oC (with cool/warm air-con)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
