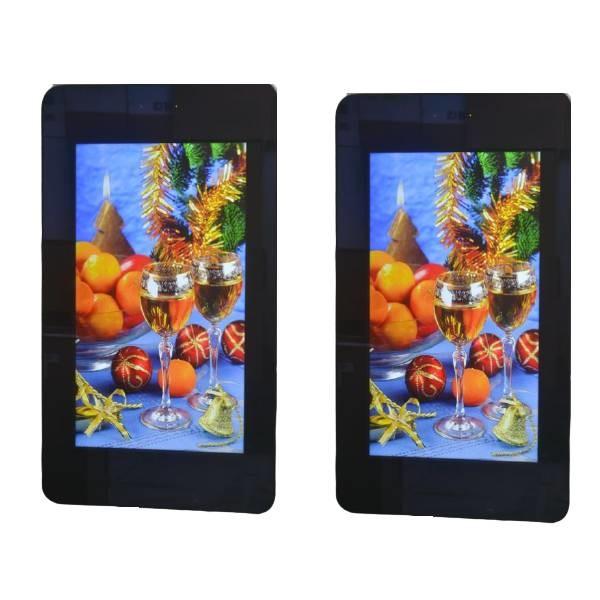

2500 Nits Outdoor LCD Digital Signage Wall Mount LCD Display
2500 Nits Outdoor LCD Digital Signage Wall Mount LCD Display
Specifications
Brand Name :
Maxbright
Model Number :
M320EDCP-i
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + wood frame packaging
Panel :
a-Si Active Matrix TFT-LCD
Resolution :
1920 x 1080
Brightness :
2000 - 2500 nits
Power Consumption :
145W at 2500 nits level
Operating voltage :
100 - 240VAC 50/60Hz
Active Area :
698.4 x 392.8 mm
Touch Screen :
10 Points PCAP option
Description

32 Inch High Brightness Outdoor Wall Mount LCD Digital Signage

Adopt direct type high bright LED backlight, LCD brightness can be increased up to 2000-2500 nits (customized), Built-in light sensor, the screen brightness can be adjusted automatically according to the ambient brightness, energy saving.

System functions:
Android Player options:
CPU: RK3288 / RK3399
RAM+ROM: 2G+8G/4G+32G
Operating system: Android 7.1
Interface: RS232.4,TTL serial port.1, USB3.01, USB2.05
Network support: 3G/4G/Wi-Fi/RJ45 Ethernet/Bluetooth /GPS


Specification Of Outdoor LCD Digital Signage

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 392.8 x 698.4 mm portrait orientation
NATIVE RESOLUTION 1080 x 1920 RGB
PIXEL PITCH 0.55926(H) x 0.55926(V) mm
COLOR 16.7 Million, 8 bits
HORIZONTAL FREQ. 121.8KHz ~ 136.4KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 9000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 12 msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK3288 Android OS ) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 110W for 2000 nits, 1450W for 2500 nits
STANDBY MODE 3 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1

OPERATING

(option)

 Media Player RK3288 Quad-core Cortex-A17 1.8GHz, 2GB DDR3, 32-64GB SD, 4 x USB ports, 1 x RJ45
1 x HDMI, 2 X RS232, Android OS 5.1
Touch Screen 10 Points PCAP option

DIMENSION

WEIGHT

1041(H) x 520(W) x 140(D)mm
35 Kg approx
Waterproof IP54 Enclosure with Wall Mount Bracket
COOLING By cooling fans controlled by MCU for outdoor
400W Mini air-condition option for Hash outdoor
ENVIRONMENTAL

Operating Temperature -10-50oC,
Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year

2500 Nits Outdoor LCD Digital Signage Wall Mount LCD Display
