High Bright HDMI Outdoor Advertising LCD Screens 49 Inches Dual Face
High Bright HDMI Outdoor Advertising LCD Screens 49 Inches Dual Face
Specifications
Brand Name :
Maxbright
Model Number :
T490EDCP-DF
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton packing
NATIVE RESOLUTION :
1080 x 1920 RGB
PIXEL PITCH :
0.55926(H) x 0.55926(V) mm
COLOR :
16.7 Million, 8 bits
HORIZONTAL FREQ :
57.3KHz ~ 70KHz
INTERFACE :
VGA, HDMI
STANDBY MODE :
3 Watt or less
Description

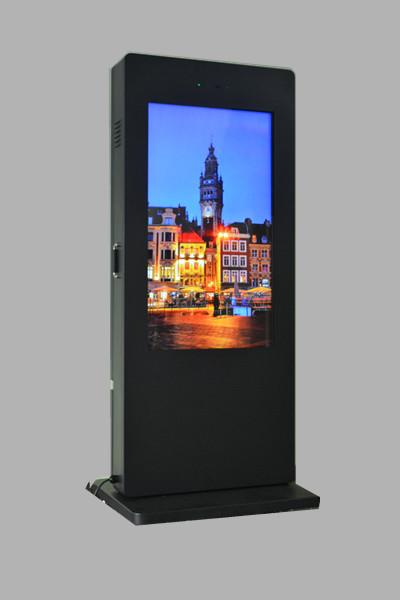

49” High Bright Dual Face Outdoor LCD Totem Model : T490EDCP-DF

LED Array Backlight Enhanced

Model: T490EDCP-DF

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000-2500 nits, Sunlight Viewable

1920 x 1080 WUXGA Max. Resolution

Aspect Ratio: 9:16 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player box or mini Ind. PC for content playback

Waterproof IP65 enclosure

Application Of Outdoor Digital Signage Totem

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

5. Public Service: Hospital, School, Telecom, Post office, etc.

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000-2500 nits, Sunlight Viewable

1920 x 1080 Max. Resolution

Aspect Ratio: 9:16 in Portrait mode enabled

Wide Viewing Angles 178 deg. (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player or mini-PC for content playback

Waterproof IP54 enclosure option

Main Specs of 49” High Bright Outdoor LCD Totem
PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 632.5 x 1096.2 mm portrait orientation
NATIVE RESOLUTION 1080 x 1920 RGB
PIXEL PITCH 0.55926(H) x 0.55926(V) mm
COLOR 16.7 Million, 8 bits
HORIZONTAL FREQ. 57.3KHz ~ 70KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 9000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 12 msec typical
INTERFACE VGA, HDMI
MEDIA PLAYER Media Player (RK3288 Android OS ) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 300W for 2000 nits, 380W for 2500 nits
STANDBY MODE 3 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1

OPERATING (option)

Media Player RK3288 Quad-core Cortex-A17

1.8GHz, 2GB DDR3, 32-64GB SD, 4xUSB ports, 1xRJ45
1 x HDMI, 2 X RS232, Android OS 5.1

DIMENSION

WEIGHT

2000(H) x 760(W) x 200(D)mm

158 Kg approx
Waterproof IP54 Enclosure
COOLING By cooling fans controlled by MCU for outdoor
600W Mini air-condition option for harsh outdoor
ENVIRONMENTAL

Operating Temperature -10-45oC,

Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
