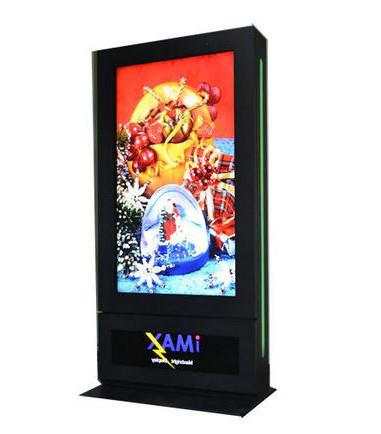

2500 nits Outdoor Digital Signage Totem 65 inch Waterproof IP65
2500 nits Outdoor Digital Signage Totem 65 inch Waterproof IP65
Specifications
Brand Name :
Maxbright
Model Number :
T650EDCP-4K
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + wood case packaging
Panel Type :
65" Digital Display
Resolution :
3840 x 2160 UHD
Brightness :
2000nits-2500 nits
Power Consumption :
430W~540W
Operating Temperature :
-30C - 50C
Operating Voltage :
100 - 240 VAC 50-60Hz
Description

Maxbright 65" High Bright 4K UHD Outdoor Digital Signage Totem Model : T650EDCP-4K

LED Array Backlight Enhanced

Model: T650EDCP-4K

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000-2500 nits, Sunlight Viewable

3840 x 2160 QWUXGA Max. 4K Resolution

Aspect Ratio: 9:16 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player box or mini Ind. PC for content playback

Waterproof IP65 enclosure

Application Of Outdoor Digital Signage Totem

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

5. Public Service: Hospital, School, Telecom, Post office, etc.

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 803.52 x 1428.48 mm in portrait orientation
NATIVE RESOLUTION 2160 x 3840 RGB
PIXEL PITCH 0.372(H) x 0.372(V) mm
COLOR 1.07 Billon color, 10 bits
HORIZONTAL FREQ. 244KHz ~ 280KHz
VERTICAL FREQ. 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1400:1, Dynamic contrast ratio: 10000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 5msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK3399 CPU) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 430W for 2000 nits, 540W for 2500 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA, Composite, S-Video cable x 1
OPERATING Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2
(option) 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option)
TOUCH 10 points PCAP, or metal mesh or Nano option

DIMENSION

WEIGHT

2000(H) x 1110(W) x 260(D) mm, (without air-con)

185 Kg approx (without air-con)
Waterproof IP65 Enclosure
COOLING By cooling fans controlled by MCU for outdoor
600W air-conditioner option for harsh outdoor
FRONT PROTECTION 3+3 AR vandal glass or 6mm AR vandal glass

ENVIRONMENTAL

OPTION

Operating Temperature -20-50oC,

Wide temp. -30-50oC (with cool/warm air-con)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year, extended 2 or 3 years available
