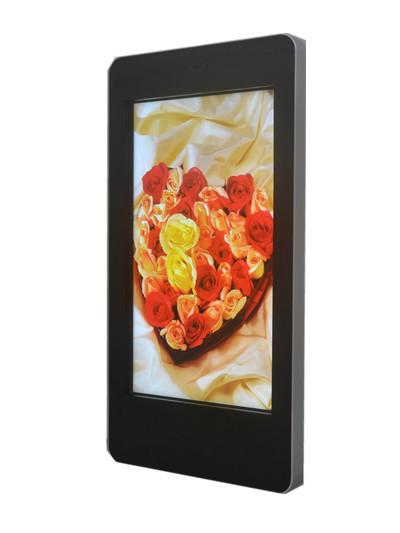

Waterproof IP65 touch screen Outdoor Digital Signage Totem Sunlight Viewable
Waterproof IP65 touch screen Outdoor Digital Signage Totem Sunlight Viewable
Specifications
Brand Name :
Maxbright
Model Number :
T750EDCP-4K
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + wood frame packaging
Name :
Outdoor Digital Signage Totem
Resolution :
3840x 2160
Brightness :
2500nits ~3000nits
Power Consumption :
900W
Operating Temperature :
-30C - 50C
Operating Voltage :
100 - 240 VAC 50-60Hz
Description

Waterproof IP65 touch screen Outdoor Digital Signage Totem Sunlight Viewable

Maxbright 75" High Bright Outdoor Advertising Totem Model : T750EDCP- 4K

LED Array Backlight Enhanced

Model: T750EDCP- 4K

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500-3000 nits, Sunlight Viewable

QWUXGA 3840 x 2160 Max. 4K Resolution

Aspect Ratio: 9:16 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Industrial mini PC for content playback

Waterproof IP65 enclosure

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 1649.664 x 927.936 mm portrait orientation
NATIVE RESOLUTION 2160 x 3840 RGB
PIXEL PITCH 0.429(H) x 0.429(V) mm
COLORS 1.07 Billon, 10 bits
HORIZONTAL FREQ. 110KHz ~ 139.5KHz
VERTICAL FREQ. 98Hz ~ 122Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2500-3000 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1200:1, Dynamic contrast ratio: 10000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 6msec typical
INTERFACE VGA, HDMI x 2, or DVI
MEDIA PLAYER Media Player (RK 3288) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 900 W at Max. Brightness Level
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1
OPERATING Mini PC: i3 CPU 4GB DDR2
(option) 500G HDD, 5 x USB ports, 1 x RJ45, WiFi (option)

DIMENSION

NET WEIGHT

2500(H) x 1260(W) x 260(D) mm, (without air-con)

190 Kg approx (without air-con)
Waterproof IP65 Enclosure
COOLING By cooling fans controlled by MCU for outdoor
1000W air-conditioner for harsh outdoor(option)

ENVIRONMENTAL

OPTION

Operating Temperature -20-50oC,

Wide temp. -30-50oC (with cool/warm air-con)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year STD, two years option

Application Of Outdoor Digital Signage

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

5. Public Service: Hospital, School, Telecom, Post office, etc.

6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
