Specifications
Brand Name :
Carpa Tent
Model Number :
CTP
Certification :
SGS, ISO9001
Place of Origin :
Guangzhou, Guangdong, China
MOQ :
1 set
Price :
Nigotiable
Payment Terms :
T/T, Western Union, , L/C, D/A, D/P
Supply Ability :
30,000 square meter per month
Delivery Time :
within 25 days
Packaging Details :
1)solid carton boxes. 2) pearl film or clear film. 3) PVC carry bags.
Side Walls :
650g/m2 Translucent PVC Fabric
Roof Fabric Color :
White/Clear
Tent Frame :
High Pressed Aluminum Alloy
Roof Covers :
850g/m2 Blockout PVC Fabric
Application :
Parties / Events / Business
Custom design :
Available
Features :
Waterproof/Flame Retardant/Wind-Resistant
Flame Retardant :
DIN4102 B1/M2/B1
Connectors :
Hop-Dip Galvanized Steel
Max. Wind Load :
100km/h ( 0.5kn/sqm )
Description

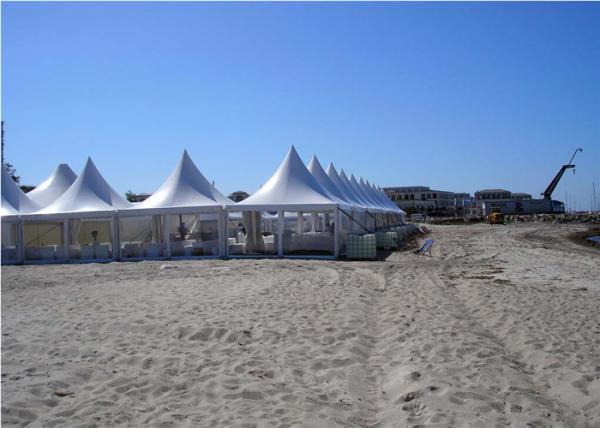

Deluxe Pop Up Beach Pagoda Tents For Events, Bad Weather Resistant Marquee Tent

General Description

Pagoda tents (also called dome tents/dome marquees in middle east countries)is available in 3m x 3m,
4m x 4m, 5m x 5m, and 6m x 6m standard sizes, and Big pagoda tent is available in 8m x 8m, and 10m x 10m standard sizes.

Pagoda tents are with innovative and user friendly design, are easy and speedy to install, dismantle, store, and transport. They are widely used for trade shows, golf events, festivals, exhibitions, shop space,
marketing point, etc.

Material Guarantee

Deluxe Pop Up Beach Pagoda Tents Bad Weather Resistant For EventsDeluxe Pop Up Beach Pagoda Tents Bad Weather Resistant For Events

Main Profiles

Materials: Hard pressed extruded Aluminum Alloy GB6061/T6

Features: Anodized surface handling, silver color, sturdy and never rust;

Cover

Density: 850g/sqm block-out white or 950g/sqm transparent fabric for roof

650g/sqm white PVC for side walls

Materials:PVC coated polyester fabric

Features:Water proof, UV resistance, Fire retardant(DIN4102,B1,M2), flame retardant (German standard DIN4102 B1/French standard M2/Chinese standard B1)

Temperature endurance: -30°C~ +70°C.

Components

Superior enclosure with hot dip galvanized steel,the thickness over 60um;

Tents Specification

Pagoda Tent Type
Model Width Length Longest components Side height Ridge height Max. wind load
CTP003 3m 3m 2.85m 2.50m 4.20m 80km/h
CTP004 4m 4m 3.85m 2.50m 4.80m 80km/h
CTP005 5m 5m 4.85m 2.50m 5.20m 80km/h
CTP006 6m 6m 5.85m 2.50m 5.80m 80km/h
CTP008 8m 8m 4.3m 2.60m 5.40m 100km/h
CTP0010 10m 10m 5.25m 2.60m 6.40m 100km/h

Character & Feature

  1. 100% re-locatable, and unobstructed free span space;
  2. Rainproof, fire retardant, UV-protection, can be environmentally controlled in any climate;
  3. Very easy and very fast to install and dismantle;
  4. Our factory operation strictly conducted in accordance with ISO 9001 quality control standards, we own The CE/SGS (TUV) quality management system certificate.

Packing Details

Deluxe Pop Up Beach Pagoda Tents Bad Weather Resistant For Events

  • Tops and side walls packed in PVC carry bags.
  • Glass walls, glass doors, ABS walls packed in transportation racks.
  • All the aluminum frame packed in pearl film or clear film.
  • All the little hardware parts packed in solid carton boxes.

Accessories

Deluxe Pop Up Beach Pagoda Tents Bad Weather Resistant For Events

About Carpa
Deluxe Pop Up Beach Pagoda Tents Bad Weather Resistant For Events
Deluxe Pop Up Beach Pagoda Tents Bad Weather Resistant For Events


Clear Photos

Deluxe Pop Up Beach Pagoda Tents Bad Weather Resistant For Events
Deluxe Pop Up Beach Pagoda Tents Bad Weather Resistant For Events


We warmly welcome you come to visit our factory and check our sample tents.
