78 OHM CCS Cooper Rg6 CATV Satellite Tri Shield Coax Atenna Cable PVC
78 OHM CCS Cooper Rg6 CATV Satellite Tri Shield Coax Atenna Cable PVC
78 OHM CCS Cooper Rg6 CATV Satellite Tri Shield Coax Atenna Cable PVC
78 OHM CCS Cooper Rg6 CATV Satellite Tri Shield Coax Atenna Cable PVC
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
RG6 Coaxial cable(trishield)
Certification :
ISO, TLC,SGS
Place of Origin :
Sichuan, China
MOQ :
10,000 Meters
Price :
Can be negotiable
Payment Terms :
T/T, L/C,
Supply Ability :
20000000m per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Product Name :
RG6 Coaxial cable(trishield)
Application :
Local Communication Cable, CATV Satellite
Conductor :
Copper CCS CCA
Insulation Material :
Foam PE
Shield :
Foil+Aluminum Magnesium+Foil
Jacket :
PVC(high quality)
Color :
White or Black
Transport Package :
300M/Wooden Spool
Description

RG6 CCS Copper Trishield CCTV Coaxial Cable Atenna Cable CATV Satellite Systems PVC

Desciption

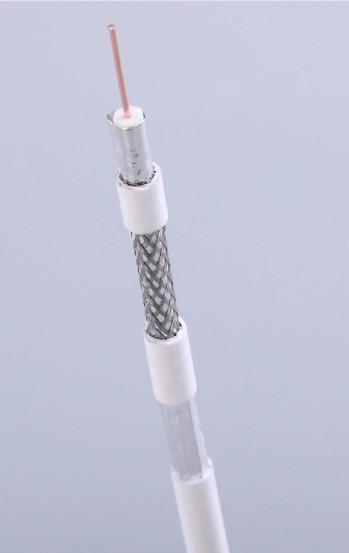

The inner conductor is premium copper clad steel (CCS) or bare copper. The dielectric core is pure polyethylene of insulating grade. Adhesive Laminated Aluminum Tape, 60% Braid, 3rd Shielded Aluminum Tape, then White or Black PVC Jacket.

Feature


Low attenuation, high return loss;
Good water resistance, aging resistance;

Applications

HD OVER THE AIR ANTENNA

DirecTV / Dish Network, and Other Satellite

Ham radio, short wave antenna usage

Cable Modem Internet

HD Digital Cable TV

Cellular Boost Antenna

TV/Video Applications

Peiformance

Electrical Characteristics Nom.Impedance 75±3Ω
DC-resistance(20ºC) ≤9,578μΩ.cm
conductor resistance 98 Ω/km
propagation speed >82%
capacitance ≤53 pF / m
Return loss 5MHz - 300 MHz: ≥24 dB
300 MHz - 1200 MHz: ≥20 dB
performance Shielding effect 5MHZ≥95dB
300MHZ≥95dB
550MHZ≥100dB
1000MHZ≥1055dB
Attenuation 5MHZ<1.9dB/100m
55MHZ<5.25dB/100m
211MHZ<10dB/100m
250MHZ<10.28dB/100m
270MHZ<11.04dB/100m
300MHZ<11.64dB/100m
330MHZ<12.26dB/100m
350MHZ<12.63dB/100m
400MHZ<13.61dB/100m
450MHZ<14.43dB/100m
500MHZ<15.29dB/100m
550MHZ<16.08dB/100m
600MHZ<16.73dB/100m
750MHZ<18.54dB/100m
870MHZ<20.04dB/100m
1000MHZ<21.49dB/100m
1200MHZ<23.50dB/100m
1450MHZ<25.79dB/100m
1750MHZ<28.61dB/100m
2000MHZ<30.58dB/100m
3000MHZ<37.73dB/100m
