Self Supporting Aerial Fiber Optic Adss Cable 12 Core 24 Core 48 Core Span 100m
Self Supporting Aerial Fiber Optic Adss Cable 12 Core 24 Core 48 Core Span 100m
Self Supporting Aerial Fiber Optic Adss Cable 12 Core 24 Core 48 Core Span 100m
Self Supporting Aerial Fiber Optic Adss Cable 12 Core 24 Core 48 Core Span 100m
Self Supporting Aerial Fiber Optic Adss Cable 12 Core 24 Core 48 Core Span 100m
Self Supporting Aerial Fiber Optic Adss Cable 12 Core 24 Core 48 Core Span 100m
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
ADSS fiber cable
Certification :
ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Self-supporting aerial
Cable structure :
Non-metal
Cores :
12 24 48 72 96 cores
Fiber model :
Single mode or multimode
Central Strength :
Fiber glass reinforced plastic (FRP)
Strength part :
Aramid yarn
Span :
As offered
Sheath Material :
PE or AT
Length :
3km/Drum
Packing :
Wooden Drum
Description

Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core 48 core span 100m cable

DESCRIPTION

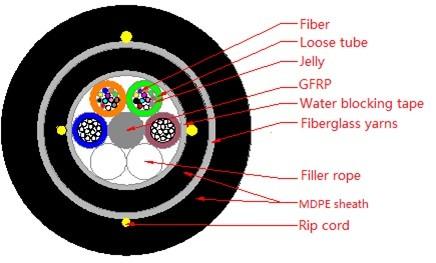

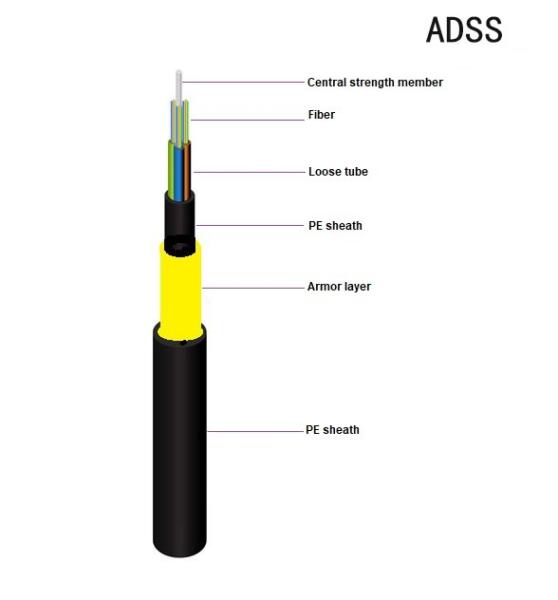

1. ADSS cables are stranded in loose tubes. 250um fiber in a loose tube made of high modulus plastic.
2. The tube is filled with waterproof filling compound. The tube (and filler) is twisted into a compact circular cable core around the FRP as a non-metallic central strength member. After the cable core is filled with filler.
3. It is covered with a thin PE inner sheath. After applying a twisted layer of aramid yarn as a reinforcement on the inner jacket, the cable is completed with a PE or AT (anti-tracking) outer jacket.


FEATURES

1. Can be installed without shutting offthe power.

2. Excellent AT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.

3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

4. Large span lengths and the largest span is over 200m.

5. Good performance oftensile strength and temperature.

6. The design life span is over 30 years.

APPLICATIONS

Long distance telecom, LAN in high voltage area or access to telecom network;
For power transmission system, much thunder areas and high electro-magnetic inerference.


PERFORMANCE

Fiber Characteristic
Attenuation 1310nm:≤0.35dB/km
1550nm:≤0.21dB/km
Cutoff wavelength When the cut-off wavelength of the optical fiber cable was tested on a 22 m long cable sample, it was less than 1260 nm.
Bending characteristics The attenuation characteristic test of 1550 nm was carried out after loosening 100 turns from the bending radius of 37.5 mm, and the attenuation increase value did not exceed 0.05 dB.
Mode field diameter 1550nm : 10.4±0.5μm
1310nm:9.1±0.4μm
Cladding diameter 125±0.7μm
Cladding non-circularity <1%
Mode length non-circularity <6%
Coating diameter 245±10 μm
Macro-bending radius 100trun X 30mm @1625 nm ≤0.05dB
Mode field/cladding concentricity deviation ≤10μm
Mechanical and Enviromental test
Item Test method Acceptance Condition

Tensile strength

( IEC60794-1-2-E1)

 Load : 2700N Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Length of cable: about 50m
Load time : 1 Min
Crush test Load : Short term crush(1100 N/cm) Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Load time : 1 Min
Impact test Points of impact : 10 Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Times per point : 1
Impact energy : 10J
Repeated bending Bending dynamic radius : 20 D Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
NO. of cycle : 20
Torsion Length:1m Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
-Twist angle;±90°
-No. of cycle:10
Water penetration Height of water : 1m No water leakage
Sample length:3m
Time :24 h
Temperature cycling Temperature :-40~+70ºC Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Time of each step:24h
No. of cycle :1
Drip test 0~70 degree No filling compound dripping
High pressure test AC10KV , 50Hz Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage

COMPANY PROFILE

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
