Outdoor 1310nm ADSS Optical Fiber Cable All Dielectric Self Supporting 48 Cores
Outdoor 1310nm ADSS Optical Fiber Cable All Dielectric Self Supporting 48 Cores
Outdoor 1310nm ADSS Optical Fiber Cable All Dielectric Self Supporting 48 Cores
Outdoor 1310nm ADSS Optical Fiber Cable All Dielectric Self Supporting 48 Cores
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
ADSS-48
Certification :
ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication Cable
Type :
Single mold Fiber
Material Shape :
Round wire
Cores :
48 cores
Fiber model :
G652D
Sheath Material :
HDPE or AT Sheath
Length :
4km/Drum or Customized
Packing :
Fumigated Wooden Tray
Description

Outdoor ADSS Optical Fiber Cable All Dielectric Self-Supporting Cable 48 Cores

DESCRIPTION

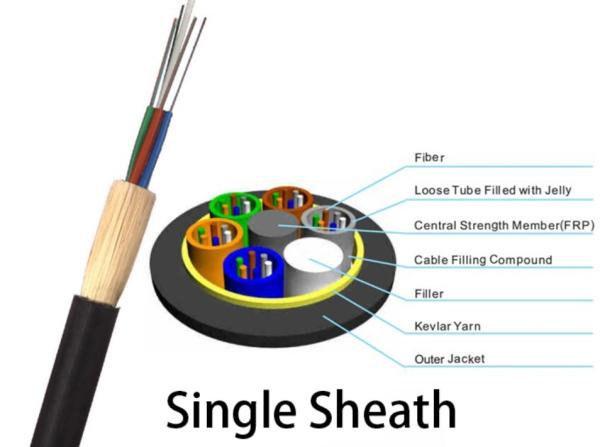

All Dielectric Self-Supporting Fiber Optic Cable ADSS is loose tube stranded. 200um or 250um Bare Fibers, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.


FEATURES


1. Non metallic structure provides good insulation, excellent lightning resistant.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
3. Anti-electromagnetism ability.
4. Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.
5. Special AT (Anti-Track) outer sheath protection, strong anti-electro-corrosion ability.

APPLICATIONS

Long distance telecom, LAN in high voltage area or access to telecom network;
For power transmission system, much thunder areas and high electro-magnetic inerference.


PERFORMANCE

Fiber Characteristic
Attenuation 1310nm:≤0.35dB/km
1550nm:≤0.21dB/km
Cutoff wavelength When the cut-off wavelength of the optical fiber cable was tested on a 22 m long cable sample, it was less than 1260 nm.
Bending characteristics The attenuation characteristic test of 1550 nm was carried out after loosening 100 turns from the bending radius of 37.5 mm, and the attenuation increase value did not exceed 0.05 dB.
Mode field diameter 1550nm : 10.4±0.5μm
1310nm:9.1±0.4μm
Cladding diameter 125±0.7μm
Cladding non-circularity <1%
Mode length non-circularity <6%
Coating diameter 245±10 μm
Macro-bending radius 100trun X 30mm @1625 nm ≤0.05dB
Mode field/cladding concentricity deviation ≤10μm

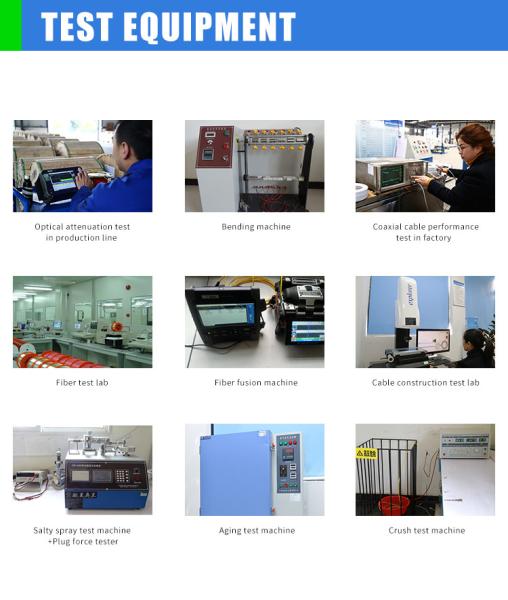

Mechanical and Enviromental test
Item Test method Acceptance Condition

Tensile strength

( IEC60794-1-2-E1)

 Load : 2700N Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Length of cable: about 50m
Load time : 1 Min
Crush test Load : Short term crush(1100 N/cm) Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Load time : 1 Min
Impact test Points of impact : 10 Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Times per point : 1
Impact energy : 10J
Repeated bending Bending dynamic radius : 20 D Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
NO. of cycle : 20
Torsion Length:1m Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
-Twist angle;±90°
-No. of cycle:10
Water penetration Height of water : 1m No water leakage
Sample length:3m
Time :24 h
Temperature cycling Temperature :-40~+70ºC Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Time of each step:24h
No. of cycle :1
Drip test 0~70 degree No filling compound dripping
High pressure test AC10KV , 50Hz Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage

COMPANY PROFILE

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
