Self Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All Dielectric
Self Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All Dielectric
Self Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All Dielectric
Self Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All Dielectric
Self Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All Dielectric
Self Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All Dielectric
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
ADSS-48
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
10,000 Meters
Price :
US $0.1-0.5 / Meter
Payment Terms :
Western Union, T/T, D/A, L/C, D/P, , MoneyGram
Packaging Details :
Fumigated Wooden Tray
Fiber Model :
G657A/G652D PE
Transport Package :
Wooden Drum
HS Code :
8544700000
Application :
Communication
Loose Tube :
PBT
Certifications :
Ce/ISO9001/Tlc
Central Strength Member :
Gfrp
Armour Layer :
Fiberglass Yarns
Specification :
2km/Drum
Origin :
Sichuan, China
Description

All Dielectric Self-Supporting ADSS Fiber Optic Cable 2-144 Core

DESCRIPTION

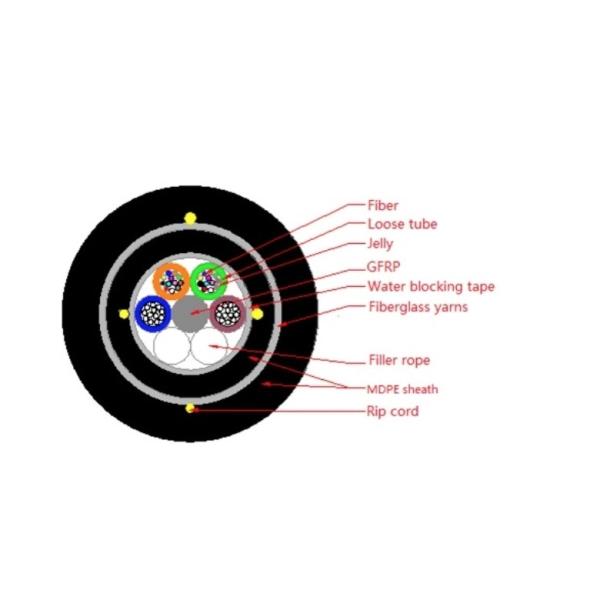

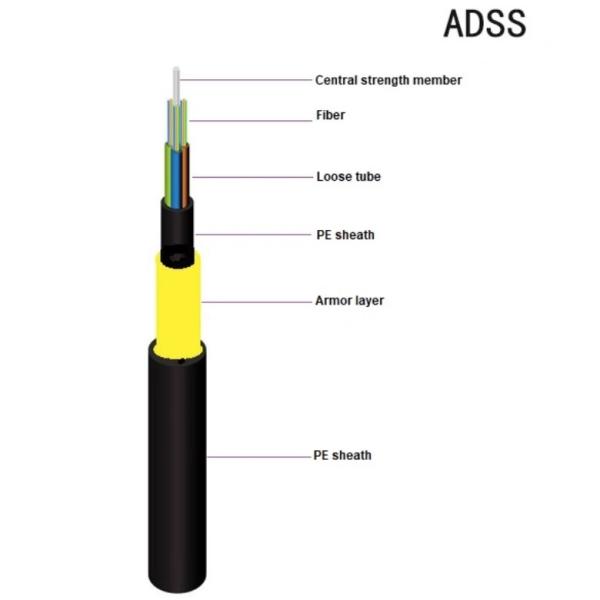

The optical fiber loose tube is wound on the central reinforcement (usually FRP) at a certain pitch, and then the inner sheath is extruded (which can be omitted in small tension and small span), and then wrapped according to the required tensile strength Appropriate spinning yarn, then extruded PE or AT sheath.


FEATURES


1. Designed for power system, fully insulated medium, self-supporting overhead optical cable can be directly hung on the power pole tower;
2. Fully-insulated structure and high withstand voltage index, which is convenient for the installation of overhead power lines for live operation;
3. The FRP with high tensile strength can withstand strong tension and achieve a large span, while preventing bird pecking and artificial shooting;
4. The thermal expansion coefficient of the ADSS optical cable is small. When the temperature changes greatly, the arc of the optical cable line changes very little, and its weight is light, and its ice crawling and wind load are also small.

APPLICATIONS
Aerial

PERFORMANCE

Fiber Characteristic
Attenuation 1310nm:≤0.35dB/km
1550nm:≤0.21dB/km
Cutoff wavelength When the cut-off wavelength of the optical fiber cable was tested on a 22 m long cable sample, it was less than 1260 nm.
Bending characteristics The attenuation characteristic test of 1550 nm was carried out after loosening 100 turns from the bending radius of 37.5 mm, and the attenuation increase value did not exceed 0.05 dB.
Mode field diameter 1550nm : 10.4±0.5μm
1310nm:9.1±0.4μm
Cladding diameter 125±0.7μm
Cladding non-circularity <1%
Mode length non-circularity <6%
Coating diameter 245±10 μm
Macro-bending radius 100trun X 30mm @1625 nm ≤0.05dB
Mode field/cladding concentricity deviation ≤10μm
Mechanical and Enviromental test
Item Test method Acceptance Condition
Tensile strength ( IEC60794-1-2-E1) Load : 2700N Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Length of cable: about 50m
Load time : 1 Min
Crush test Load : Short term crush(1100 N/cm) Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Load time : 1 Min
Impact test Points of impact : 10 Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Times per point : 1
Impact energy : 10J
Repeated bending Bending dynamic radius : 20 D Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
NO. of cycle : 20
Torsion Length:1m Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
-Twist angle;±90°
-No. of cycle:10
Water penetration Height of water : 1m No water leakage
Sample length:3m
Time :24 h
Temperature cycling Temperature :-40~+70ºC Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Time of each step:24h
No. of cycle :1
Drip test 0~70 degree No filling compound dripping
High pressure test AC10KV , 50Hz Loss change ≤ 0.05dB@1550nm No fiber break nor sheath damage
Self Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All DielectricSelf Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All DielectricSelf Supporting Gfrp ADSS Fiber Optic Cable 2 To144 Core All Dielectric
