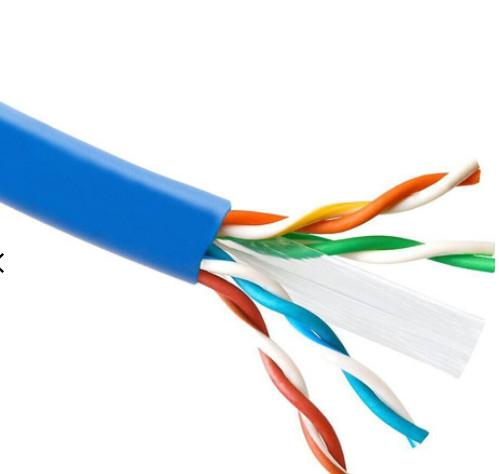

Cat6 Cca Shield Ftp Lan Cable Fluke Test 1000ft Network Cable
Cat6 Cca Shield Ftp Lan Cable Fluke Test 1000ft Network Cable
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
FTP CAT6(CCA)
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
30500 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
3050000M per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Pallet
Product name :
FTP CAT6 CCA LAN CABLE
Conductor :
CCA
Conductor Structure :
Solid or stranded
Insulation :
HDPE
Sheath Material :
PVC
Sheath color :
Black
Length :
305m
Package :
Pull box
Conductor material :
CCA25%, Copper100%,CCAG40%
Num of Conductor :
2P,4P,5P,10P,20P,50P
Description

FTP CAT6 LAN CABLE (CCA conductor)

Description

We now consider FTP and STP, which are each shielded Ethernet cables. The terms can be a bit confusing because they’re often used interchangeably, and each has extra components inside the cable in order to protect signals from interference. However, there is a difference between them.

FTP cable specifically uses a foil (“F”) shield wrapped around the outside of the twisted pair package, and does not protect the pairs individually. STP cable normally covers each of the twisted pairs separately with either foil or tightly-braided wire, with another layer of foil or braided shielding covering the entire conductor package. That makes STP cable fully shielded (“S”). As you’d likely guess, STP provides the best protection against EMI because of its several layers of shielding.

FTP CAT6 LAN CABLE is Using standard twisted construction design, small crosstalk of signal transmission Upload and download
in high speed transfer.

Features


Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.

Applications


For the military, hospitals, banking and financial systems, etc.

Performance

Electrical Characteristics
Frequency (MHz) ATT(≤dB/100m) NEXT(≥dB) ELFEXT(≥dB)
1 2.04 62.3 60.0
4 4.1 55.3 49.0
10 6.5 47.3 41.0
20 9.3 42.8 35.0
31.25 11.7 39.9 31.1
62.5 17.0 35.2 25.0
100 22.0 32.3 21.0
Characteristic Impedance 100±15Ω D-C Resistance Unbalance ≤2.5%
Delay Skew ≤40ns/100m D-C Resistance ≤11.5Ω/100m
Phase Delay ≤538ns/100m Operating Temperature -20ºC~+60ºC

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
