Networking Communication SFTP LAN CABLE 1000 Foot Cat5e Cable 4 Pairs
Networking Communication SFTP LAN CABLE 1000 Foot Cat5e Cable 4 Pairs
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
SFTP CAT5(CCA)
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
30500 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
3050000M per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
SFTP CAT5E LAN CABLE
Application :
Networking communication
Core :
4 pairs
Conductor :
CCA
Insulation :
HDPE
Sheath Material :
LSZH PE
Length :
305m
Package :
Carton
Description

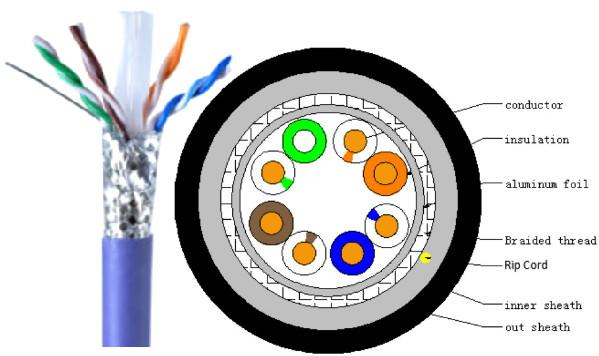

SFTP CAT5E LAN CABLE (CCA Conductor)

Material Instruction
1. CCA or 24AWG Soft Plain Copper.
2. Insulation: PE;
3.The double jacket can better prolong the service life of the product.

Environmental protection PVC/LSZH sheath, high temperature resistance, long service life.

Appliacation
1. Meets ANSI/TIA-568B.
2. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.

Performance

Electrical Characteristics
Frequency (MHz) ATT(≤dB/100m) NEXT(≥dB) ELFEXT(≥dB) PS NEXT(≥dB) PS ELNEXT(≥dB)
4 4.0 56.3 52 53.3 49
10 6.2 50.3 44 47.3 41
20 8.5 45.8 38 42.8 35
31.25 11.4 42.9 34.1 39.9 31
62.5 16.6 38.4 28.0 35.4 25.1
100 21.7 35.3 24.0 32.3 21.0
Characteristic Impedance 100±10Ω D-C Resistance Unbalance ≤2%
Delay Skew ≤45ns/100m D-C Resistance ≤10.2Ω/100m
Phase Delay ≤536ns/100m Operating Temperature -20℃~+60℃

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
