UTP CAT6 LAN CABLE
Features

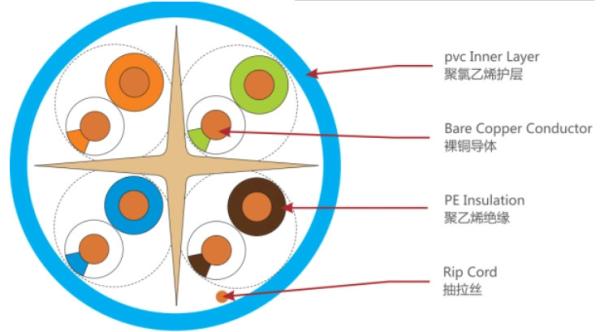

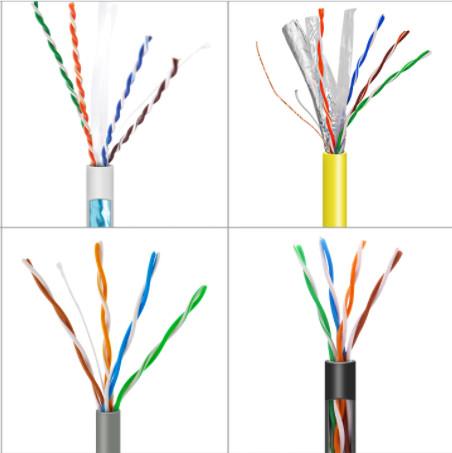

4pairs twisted,make the tollerance to mm grade,tight,accurate twist can resist NEXT,electromagnetic interference(EMC).
High density Polyethylene(HDPE) has good heat and cold resistance,rigidity,toughness,good mechnical strength.
Soft jacket,easy for cable laying.

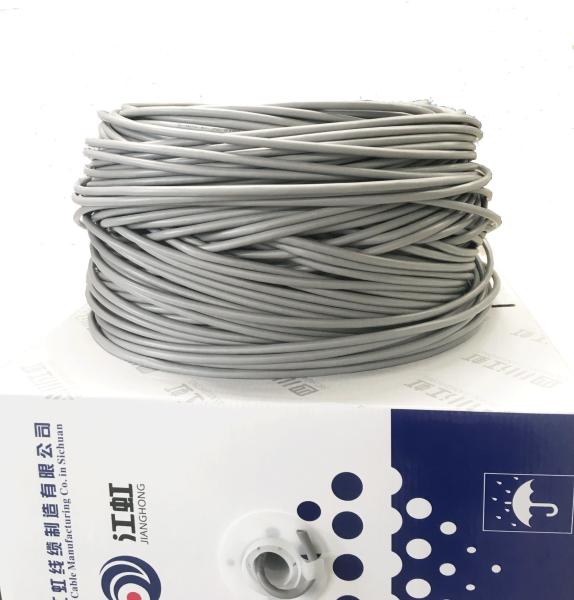

Special cable roll can pull out without knot.
Cable printed in meter mark,easy for use.
Applications
For the military, hospitals, banking and financial systems, etc.
Performance
Electrical Characteristics | ||||||
Frequency (MHz) | ATT (≤dB/100m) | NEXT (≥dB) | ELFEXT (≥dB) | PS NEXT (≥dB) | PS ELNEXT (≥dB) | Loss return (dB) |
1 | 2.4 | 65.3 | 63.8 | 62.3 | 60.8 | 27 |
4 | 4.9 | 56.3 | 51.7 | 53.3 | 48.7 | 26.5 |
8 | 6.9 | 51.8 | 45.7 | 48.8 | 42.7 | 25.5 |
10 | 7.8 | 50.3 | 43.8 | 47.3 | 40.8 | 25 |
16 | 9.9 | 47.3 | 39.9 | 44.3 | 36.7 | 25 |
20 | 11.1 | 45.8 | 37.7 | 42.8 | 34.7 | 25 |
25 | 12.5 | 44.3 | 35.8 | 41.3 | 32.8 | 24.2 |
31.25 | 14.1 | 42.9 | 33.9 | 39.9 | 30.9 | 23.3 |
62.5 | 20.4 | 38.34 | 27.8 | 35.4 | 24.8 | 20.7 |
100 | 26.4 | 35.3 | 23.8 | 32.3 | 20.8 | 19 |
Characteristic Impedance | 100±15Ω | D-C Resistance Unbalance | ≤2% | |||
Delay Skew | ≤40ns/100m | D-C Resistance | ≤14.0Ω/100m | |||
Phase Delay | ≤538ns/100m | Operating Temperature | -10° C~+60° C | |||
Minimum insulation resistance at 15 ° C at 500 V DC | 5000MΩ/KM | Dielectric strength between conductors | ≥2500V DC/2s | |||
Maximum working capacitance 1kHz | ≤5.6nF/100m | Propagation speed | 66% |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
