Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GJYXCH
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
50000KM per month
Delivery Time :
5-8Days

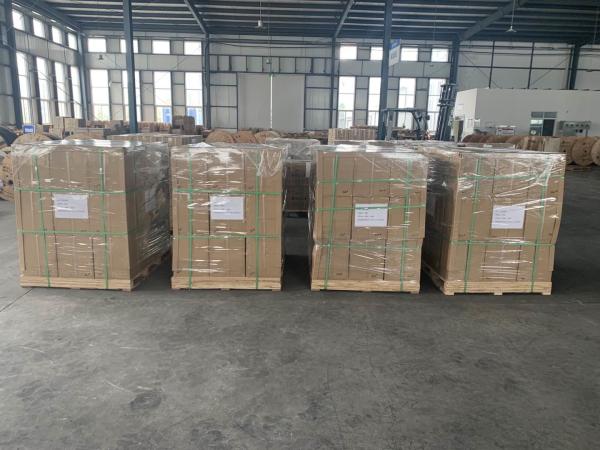

Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
Ftth drop cable
Core :
1/2cores
Application :
Communication and FTTH
Type :
SM optical fiber
Fiber Model :
G657a2 G657a1
Sheath Material :
LSZH Jacket

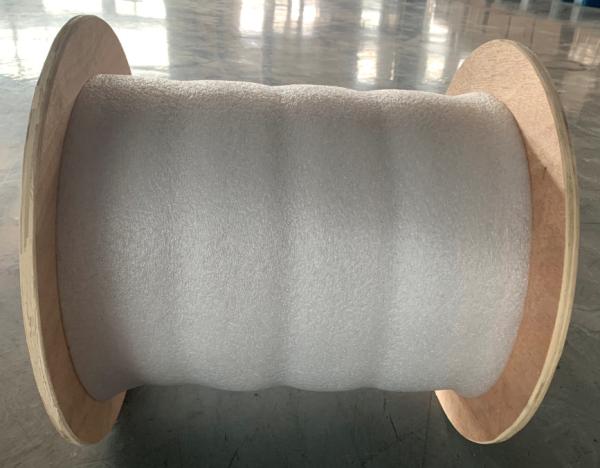

Package :
Carton+roll+pallet
Length :
1-3KM/roll
Description

1 2cores LSZH Jacket Three Steel Wire Single Mode Fiber Optic Cable Ftth Drop G657A2

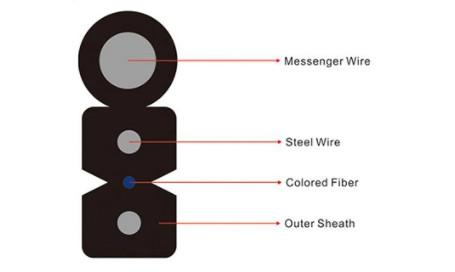

Description

Single mode

Fiber core is positioned in the centre

Two parallel steel wiresare placed at the two sides

A steel wire as the messenger wire is also applied

Then the cable is completed with LSZH sheath


Features

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.


Performance

Type

Max.Attenuation

Tensile strength

Crush resistance

Min.Bending radius(Dynamic)

1310nm

1550nm

Short term

Long term

Short term

Long term

GJYXFCH

0.36dB/km

0.25dB/km

600N

300N

2200N

1000N

40.0×Cable-φ

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
