Self Supporting Armoured Aluminum GYTC8A Fiber Optic Overhead Cable HDPE Sheath
Self Supporting Armoured Aluminum GYTC8A Fiber Optic Overhead Cable HDPE Sheath
Self Supporting Armoured Aluminum GYTC8A Fiber Optic Overhead Cable HDPE Sheath
Self Supporting Armoured Aluminum GYTC8A Fiber Optic Overhead Cable HDPE Sheath
Self Supporting Armoured Aluminum GYTC8A Fiber Optic Overhead Cable HDPE Sheath
Self Supporting Armoured Aluminum GYTC8A Fiber Optic Overhead Cable HDPE Sheath
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYTC8A
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Type :
Single-mode
Connection Structure :
Fig8 Self-Supporting
Core :
8 12 24 48cores
Fiber Model :
G652D
Loose tube Material :
PBT(high quality) Loose tube
Arored :
Aluminum
Sheath Material :
PE
Length :
3KM/Drum or Customized
Description

Self Supporting Armoured Fibre Optic Cable GYTC8A Fiber Optic Overhead Cable HDPE

DESCRIPTION

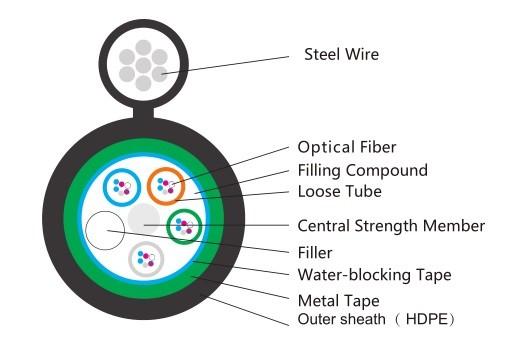

Put the optical fiber into a loose tube made of high modulus material;
The loose tube is filled with a waterproof compound;
The center of the cable core is a metal reinforced core, and the loose tube (and filler rope) is twisted around the center reinforced core to form a compact and round cable core.
Steel suspension wire, armored with steel tape, then integrated into an 8-shaped polyethylene jacket.The material of jacket is PE.


FEATURES


Steel wire strands have extremely high tensile strength;

High quality and low cost;
Lightweight for easy overhead installation.

APPLICATIONS


Outdoor wiring


PERFORMANCE

Type Max.Attenuation Tensile test Crush test Minimum Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYTC8A 0.36dB/km 0.22dB/km 6000N 3000N 3000N 1000N 20D

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
