GJXFH-2 Optical Fiber Internet Cable Single Mode Duplex Fiber Optic Cable 2 Cores FRP Strength
GJXFH-2 Optical Fiber Internet Cable Single Mode Duplex Fiber Optic Cable 2 Cores FRP Strength
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GJXFH-2
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
50000KM per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
Indoor FTTH drop cable
Core :
1-4
Application :
Indoor wiring
Type :
SM Fiber
Fiber Model :
G657a2 G657a1
Sheath Material :
LSZH
Length :
1-3KM/Reel
Package :
roll+carton+pallet
Description

2 Cores FRP strength member Indoor Fiber Optic Cable Single mode FTTH Drop Cable

Description

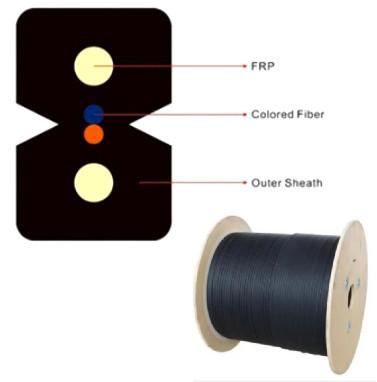

The fiber optic unit is located in the center. Two parallel pieces of fiber reinforced plastic (FRP) are placed on both sides. The cable is then fitted with a black LSZH sheath.


Features


Soft, flexible, easy to splice fiber, and with big capacity data transmission;

Applications


Indoor building wiring


Performance

Type

Max.Attenuation

Tensile strength

Crush resistance

Min.Bending radius

1310nm

1550nm

Short term

Long term

Short term

Long term

GJXFH-2

0.36dB/km

0.25dB/km

80N

40N

1000N

500N

40.0×Cable-φ

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
