Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
RG11 Coaxial cable(Copper)
Certification :
ISO, TLC,SGS
Place of Origin :
Sichuan, China
MOQ :
10,000 Meters
Price :
Can be negotiable
Payment Terms :
T/T, L/C,
Supply Ability :
20000000m per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Product Name :
RG11 Coaxial cable(Copper)
Application :
CCTV CATV Satellite
Conductor :
Solid Copper
Insulation Material :
Foam PE
Shield :
Aluminum Foil+Braiding Wire
Jacket :
PVC
Color :
White
Transport Package :
Box
Description

RG11 75ohm CCTV Coaxial Cable(Copper Conductor)

Desciption


Inner conductor is high quality copper .Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PVC jacket.

Feature


Low attenuation, high return loss;
Good water resistance, aging resistance;

Peiformance

Electrical Characteristics Nom.Impedance 75±3Ω
DC-resistance(20ºC) ≤9,578μΩ.cm
conductor resistance 98 Ω/km
propagation speed >82%
capacitance ≤53 pF / m
Return loss 5MHz - 300 MHz: ≥24 dB
300 MHz - 1200 MHz: ≥20 dB
performance Shielding effect 5MHZ≥95dB
300MHZ≥95dB
550MHZ≥100dB
1000MHZ≥1055dB
Attenuation 5MHZ<1.9dB/100m
55MHZ<5.25dB/100m
211MHZ<10dB/100m
250MHZ<10.28dB/100m
270MHZ<11.04dB/100m
300MHZ<11.64dB/100m
330MHZ<12.26dB/100m
350MHZ<12.63dB/100m
400MHZ<13.61dB/100m
450MHZ<14.43dB/100m
500MHZ<15.29dB/100m
550MHZ<16.08dB/100m
600MHZ<16.73dB/100m
750MHZ<18.54dB/100m
870MHZ<20.04dB/100m
1000MHZ<21.49dB/100m
1200MHZ<23.50dB/100m
1450MHZ<25.79dB/100m
1750MHZ<28.61dB/100m
2000MHZ<30.58dB/100m
3000MHZ<37.73dB/100m

Conpany file

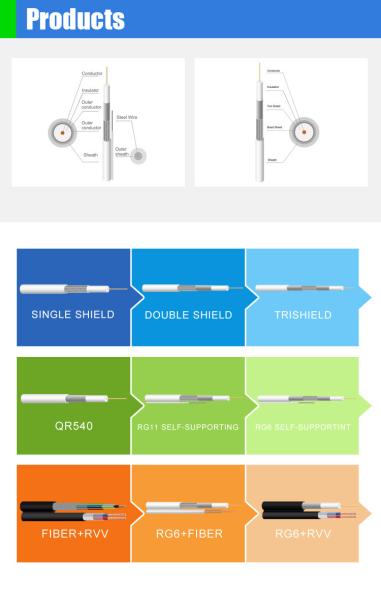

Solid Copper RG11 Rg6 CCTV Coaxial Cable 75ohm Atenna Cable CATV Satellite Systems
