RG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS Conductor
RG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS Conductor
RG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS Conductor
RG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS Conductor
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
RG11 Coaxial cable(Copper)
Certification :
ISO, TLC,SGS
Place of Origin :
Sichuan, China
MOQ :
10,000 Meters
Price :
Can be negotiable
Payment Terms :
T/T, L/C,
Supply Ability :
20000000m per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Product Name :
RG11 Coaxial cable(CCS)
Application :
Local Communication Cable, CCTV CATV Satellite
Conductor :
Copper
Insulation Material :
Foam PE
Shield :
Foil+Aluminum Magnesium Wire
Jacket :
PVC
Color :
Customized
Transport Package :
Wooden Drum or Box
Description

RG11 75ohm CCTV Coaxial Cable(CCS Conductor)

Desciption


Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PE jacket.

Feature


Low attenuation, high return loss;
Good water resistance, aging resistance;

Peiformance

Electrical Characteristics Nom.Impedance 75±3Ω
DC-resistance(20ºC) ≤9,578μΩ.cm
conductor resistance 98 Ω/km
propagation speed >82%
capacitance ≤53 pF / m
Return loss 5MHz - 300 MHz: ≥24 dB
300 MHz - 1200 MHz: ≥20 dB
performance Shielding effect 5MHZ≥95dB
300MHZ≥95dB
550MHZ≥100dB
1000MHZ≥1055dB
Attenuation 5MHZ<1.9dB/100m
55MHZ<5.25dB/100m
211MHZ<10dB/100m
250MHZ<10.28dB/100m
270MHZ<11.04dB/100m
300MHZ<11.64dB/100m
330MHZ<12.26dB/100m
350MHZ<12.63dB/100m
400MHZ<13.61dB/100m
450MHZ<14.43dB/100m
500MHZ<15.29dB/100m
550MHZ<16.08dB/100m
600MHZ<16.73dB/100m
750MHZ<18.54dB/100m
870MHZ<20.04dB/100m
1000MHZ<21.49dB/100m
1200MHZ<23.50dB/100m
1450MHZ<25.79dB/100m
1750MHZ<28.61dB/100m
2000MHZ<30.58dB/100m
3000MHZ<37.73dB/100m

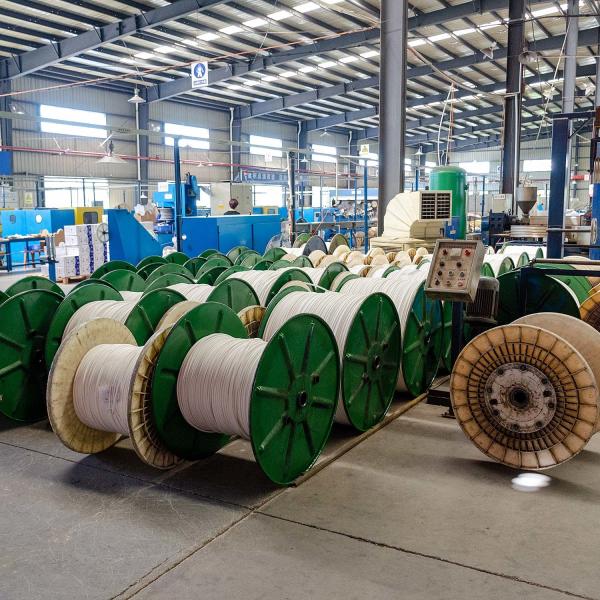

Conpany file

RG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS Conductor

RG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS ConductorRG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS Conductor
RG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS Conductor
RG11 CCS 75ohm Catv Coaxial Cable Atenna Coax Cable CCS Conductor
