Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GJYXFCH-2
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
50000KM per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
FTTH drop cable
Core :
2cores
Application :
Communication outdoor
Fiber Model :
G657A1
Strength Member :
Two FRP
Sheath Material :
LSZH
Allowed Lateral Pressure :
>1000(N/100mm)
Allowed Tensile Strength :
1000N<10000N
Length :
2km/Drum or Customized
Packing :
Roll+Carton+Pallet
Description

GJYXFCH 2Core Indoor Outdoor FTTH Drop Cable Single Mode FRP Strength Member

Product Construction
Fiber:
250µm colorfiber
Fiberglass reinforced plastic (FRP) or Steel Wire.

Self-supported Member:
Steel Wire

Outer Jacket:
UV and Flame resistant LSZH

Features
Compact, soft, flexible, easyto install.

Applications

Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

Performance

Type

Max.Attenuation

Tensile strength

Crush resistance

Min.Bending radius(Dynamic)

1310nm

1550nm

Short term

Long term

Short term

Long term

GJYXFCH-2

0.36dB/km

0.25dB/km

80N

40N

1000N

500N

40.0×Cable-φ

NO.

Items

Unit

Specification

G657A1

1

 Mode Field Diameter

1310nm

µm

 (8.4-9.2)±0.4

2

 Cladding Diameter

µm

 125.0±0.7

3

 Cladding Non-Circularity

%

 ≤1.0

4

 Core-Cladding Concentricity Error

µm

 ≤0.5

5

 Coating Diameter

µm

 245±10

6

 Coating Non-Circularity

%

 ≤1.0

7

 Cladding-coating Concentricity Error

µm

<12.5

8

 Cable Cutoff Wavelength

nm

 λ cc ≤1260

9

Attenuation(max.)

1310nm

dB/km

0.4

1550nm

dB/km

0.3

10

Macro-Bending Loss

 1 turn×10mm radius @1550nm

dB

≤0.75

1 turn×10mm radius

@1625nm

dB

 ≤1.5

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .

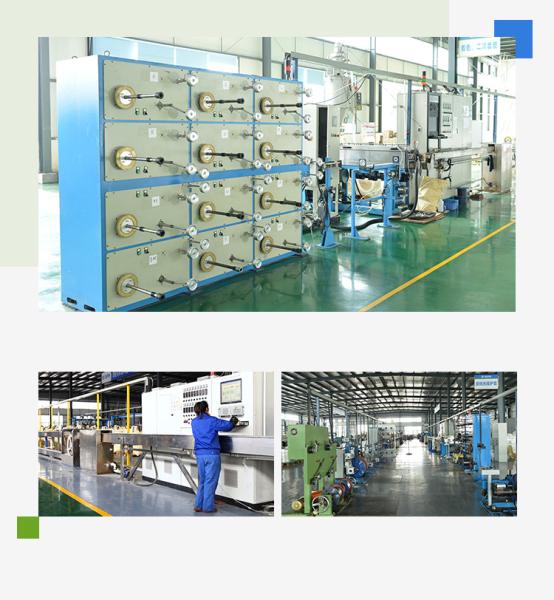

2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
