Single Mold Ftth Outdoor Drop Armored Fiber Optic Cable 8 Core 12 Core
Single Mold Ftth Outdoor Drop Armored Fiber Optic Cable 8 Core 12 Core
Single Mold Ftth Outdoor Drop Armored Fiber Optic Cable 8 Core 12 Core
Single Mold Ftth Outdoor Drop Armored Fiber Optic Cable 8 Core 12 Core
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GJYXFHA
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
50000KM per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
2-12 Cores Armored Ftth cable
Core :
2-12cores
Type :
SM optical fiber
Fiber Model :
G657a2 G657a1 G652d
Armored :
Aluminum
Sheath Material :
LSZH PE
Package :
roll+carton+pallet
Length :
2km/roll or customized
Description

Single Mold 2-12 Cores Armored Outdoor Fiber Optic Cable FTTH Drop Cable

Description

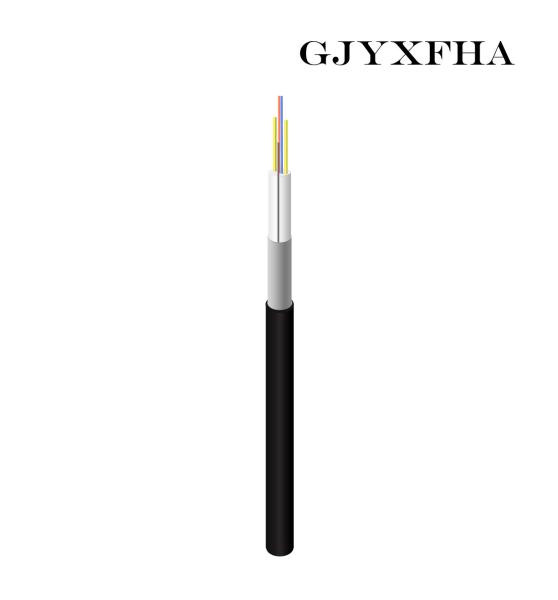

SM 2-12 cores armored outdoor FTTH drop cable is positioned the fiber in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides,and the aluminum armored layer in thd LSZH or PE sheath.


Features

Low smoke, zero halogen and flame retardant sheath.

Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

Novel flute design, easily strip and splice, simplify the installation and maintenance.

Aluminum layer armor, effectively anti-rodent, waterproof.


Applications


Outdoor cabling


Performance

Type

Attenuation

Tensile test

Crush test

Min.bending radius

1310nm

1550nm

Short term

Long term

Short term

Long term

GJYXFHA

0.36dB/km

0.25dB/km

600N

300N

2200N

1000N

20.0×Cable-φ

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
