4 Cores 2kmGJYXFCH FTTH Drop Cable Outdoor Fiber Optic For Building Wiring
4 Cores 2kmGJYXFCH FTTH Drop Cable Outdoor Fiber Optic For Building Wiring
4 Cores 2kmGJYXFCH FTTH Drop Cable Outdoor Fiber Optic For Building Wiring
4 Cores 2kmGJYXFCH FTTH Drop Cable Outdoor Fiber Optic For Building Wiring
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GJYXFCH
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
50000KM per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
4cores outdoor FTTH drop cable
Core :
4cores
Application :
Indoor building wiring
Type :
Single-mode Fiber
Fiber Model :
G657A2 G657A1
Messenger :
Steel wire
Strength Member :
FRP
Sheath Material :
LSZH PE
Package :
Fumigated Wooden Tray
Length :
2km/Drum or customized
Description

Single Mode FRP strength member 4 Cores Outdoor Fiber Optic Cable With Messenger

Description

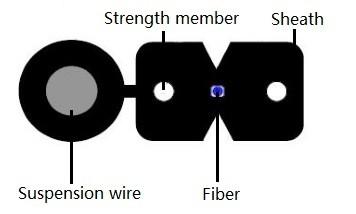

Single mode 4 cores outdoor Fiber Optic Cable is to place the optical fiber in the center, place two parallel FRP strength members on both sides as reinforcement elements,equipped with a steel wire messenger,squeeze a low-smoke, halogen-free flame or pvc retardant sheath into cable.


Features


Good flame retardant characteristics;
Small bending radius;

Applications


Outdoor building wiring


Performance

Type

Max.Attenuation

Tensile strength

Crush resistance

Min.Bending radius

1310nm

1550nm

Short term

Long term

Short term

Long term

GJYXFCH

0.36dB/km

0.25dB/km

600N

300N

2200N

1000N

40.0×Cable-φ

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
