UTP CAT6 Outdoor Ethernet CCA CCA Network Cable 1000 Ft Fluke Test 305m 20m
UTP CAT6 Outdoor Ethernet CCA CCA Network Cable 1000 Ft Fluke Test 305m 20m
UTP CAT6 Outdoor Ethernet CCA CCA Network Cable 1000 Ft Fluke Test 305m 20m
UTP CAT6 Outdoor Ethernet CCA CCA Network Cable 1000 Ft Fluke Test 305m 20m
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
UTP CAT6(CCA)
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
30500 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
3050000M per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Pallet
Product name :
UTP CAT6 CCA LAN CABLE
Conductor :
CCA
Conductor Structure :
Solid
Insulation :
PE
Sheath Material :
PVC
Sheath color :
White
Length :
Customization
Package :
Carton+pallet
Description

UTP CAT6 LAN CABLE (CCA conductor)

Description

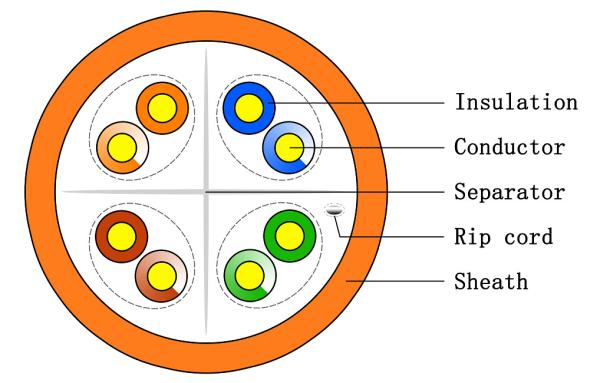

UTP CAT6 LAN CABLE is twisting a pair of mutually insulated metal wires in a counterclockwise direction at a certain density, can effectively reduce signal interference, and then wrap 4 pairs of twisted pairs into PVC cable jacket.

Applications


For the military, hospitals, banking and financial systems, etc.

Performance

Electrical Characteristics
Frequency
(MHz)		 ATT.
(dB)		 pr-pr NEXT (dB) PS NEXT (dB) pr-pr ELFEXT (dB) PS ELFEXT (dB) Return loss
(dB)		 Delay Phase
(ns)		 Impedance
1 2,2 72,7 70,3 63,2 60,2 19 580 100+/-15
4 4,2 63 60,5 51,2 48,2 19 563 100+/-15
10 6,5 56,6 54 43,2 40,2 19 556,8 100+/-15
16 8,3 53,2 50,6 39,1 36,1 19 554,5 100+/-15
20 9,3 51,6 49 37,2 34,2 19 553,6 100+/-15
31,25 11,7 48,4 45,7 33,3 30,3 17,1 552,1 100+/-15
62,5 16,9 43,4 40,6 27,3 24,3 14,1 550,3 100+/-15
100 21,7 39,9 37,1 23,2 20,2 12 549,4 100+/-15
125 24,5 38,3 35,4 21,3 18,3 11 549 100+/-15
155,5 27,6 36,7 33,8 19,4 16,4 10,1 548,7 100+/-15
175 29,5 35,8 32,9 18,4 15,4 9,6 548,6 100+/-15
200 31,7 34,8 31,9 18,4 15,4 9 548,4 100+/-15
250 36 33,1 30,2 17,2 14,2 8 548,2 100+/-15
Characteristic Impedance 100±5Ω D-C Resistance Unbalance ≤2%
Propagation speed 68% Max. Resistance CC a20°C 93.8W/Km
Insolation resistance 5000MW/Km Operating Temperature -10ºC~+70ºC

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
