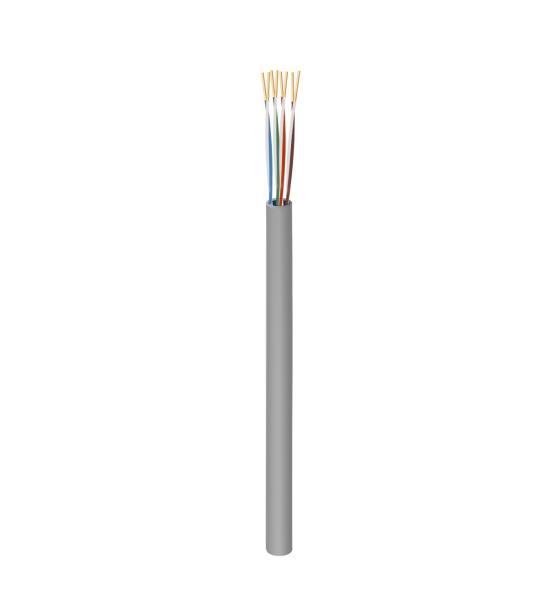

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable
8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable
8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable
8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
UTP CAT5
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
30500 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
3050000M per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
UTP CAT5 LAN CABLE
Application :
Networking communication
Core :
8 cores
Conductor :
copper
Insulation :
HDPE
Sheath Material :
LSZH or PVC
Length :
305M
Package :
Carton+pallet
Description

UTP CAT5 LAN CABLE

Description

Twisting a pair of mutually insulated metal wires in a counterclockwise direction at a certain density can effectively reduce signal interference, and then wrap 4 pairs of twisted pairs into PVC or LSZH cable jacket.


Features

Low attenuation, low crosstalk

Connecting between Ethernet and network device
Comes with a simple pull box for easy wiring construction

Applications


network cabling


Performance

Electrical Characteristics
Frequency (MHz) ATT(≤dB/100m) NEXT(≥dB) ELFEXT(≥dB)
1 2.04 62.3 60.0
4 4.1 55.3 49.0
10 6.5 47.3 41.0
20 9.3 42.8 35.0
31.25 11.7 39.9 31.1
62.5 17.0 35.2 25.0
100 22.0 32.3 21.0
Characteristic Impedance 100±15Ω D-C Resistance Unbalance ≤2.5%
Delay Skew ≤40ns/100m D-C Resistance ≤11.5Ω/100m
Phase Delay ≤538ns/100m Operating Temperature -20℃~+60℃

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable
