12 24 Cores Armoured Self Supporting Fiber Optic Cable GYXTC8S
12 24 Cores Armoured Self Supporting Fiber Optic Cable GYXTC8S
12 24 Cores Armoured Self Supporting Fiber Optic Cable GYXTC8S
12 24 Cores Armoured Self Supporting Fiber Optic Cable GYXTC8S
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYTC8S
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication outdoor
Type :
Single-mode Fiber
Connection Structure :
Fig8 SelfSupporting
Core :
12-24cores
Fiber Model :
G652D or G657A
Loose tube Material :
PBT
Sheath Material :
HDPE MDPE
Transport Package :
Wooden Drum
Description

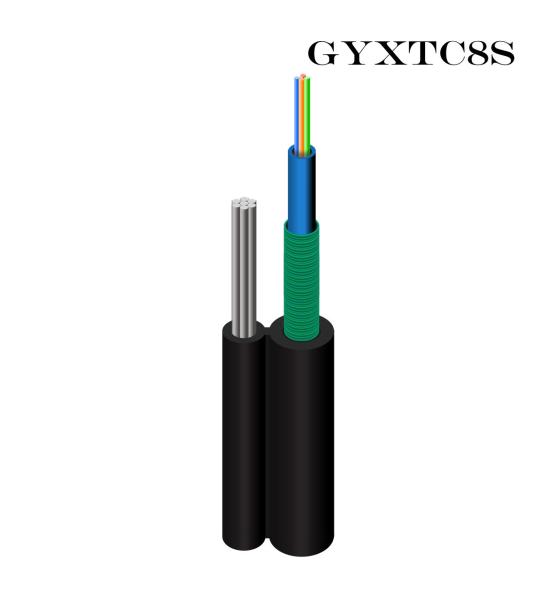

GYTC8S Figure-8 Self Supporting Fiber Optic Cable Single Mode 12 24 48 72Cores

DESCRIPTION

This product is to put the optical fiber into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound. The loose tube is covered with a layer of double-sided plastic-coated steel tape longitudinal package, and a water blocking material is added between the steel tape and the loose tube to ensure the compactness and longitudinal water blocking of the optical cable, and the steel wire strand is integrated into an 8-shaped polyethylene sheath Inside.

FEATURES


The steel wire strand has extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs;
Double-sided plastic-coated steel belt improves the moisture resistance of optical cable
Central tube structure, small diameter, light weight, easy to lay

APPLICATIONS
Outdoor wiring, suitable for overhead, pipeline laying, long distance, inter-office communication

PERFORMANCE

Type Max.Attenuation Tensile test Crush test Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYTC8S 0.36dB/km 0.22dB/km 4000N 1000N 1000N 300N 20D

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
