GYTC8S Fig 8 Power Cable Self Supporting Anti-Rodent 12F 24f Fiber Optic Cable
GYTC8S Fig 8 Power Cable Self Supporting Anti-Rodent 12F 24f Fiber Optic Cable
GYTC8S Fig 8 Power Cable Self Supporting Anti-Rodent 12F 24f Fiber Optic Cable
GYTC8S Fig 8 Power Cable Self Supporting Anti-Rodent 12F 24f Fiber Optic Cable
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYTC8S
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Material Shape :
Round wire
Type :
SM Fiber
Connection Structure :
Figure-8 Self-Supporting
Core :
12-48cores
Fiber Model :
G652D or G657A
Loose tube Material :
PBT(high quality）
Sheath Material :
HDPE LSZH
Length :
customized service
Description

GYTC8S Armored Steel Fig8 Self Supporting Fiber Optic Cable Single Mode 12 24 48 72Cores

DESCRIPTION

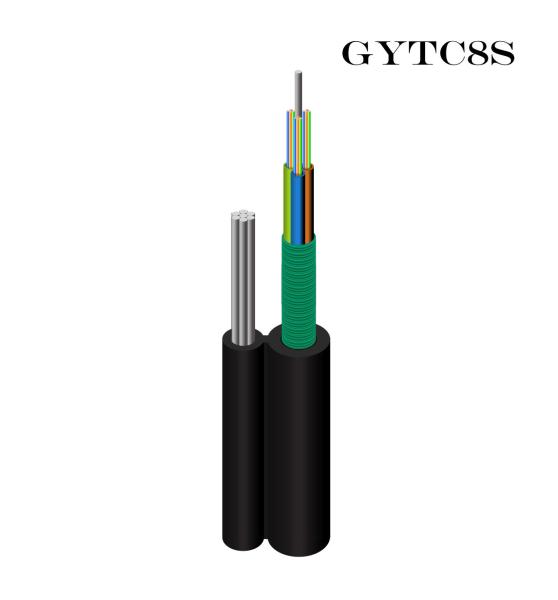

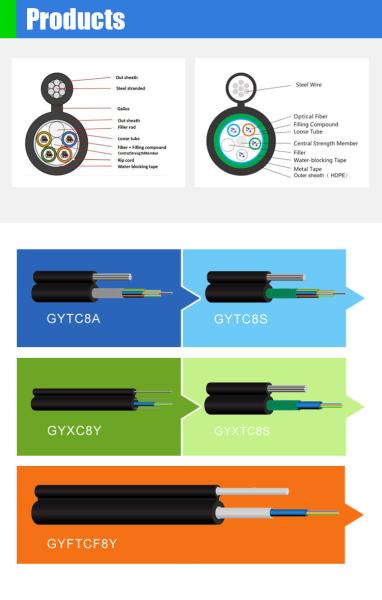

This product is to put the optical fiber into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound. The center of the cable core is a metal reinforced core, and the loose tube (and filler rope) is twisted around the center reinforced core to form a compact and round cable core. Steel suspension wire, armored with steel tape, then integrated into an 8-shaped polyethylene jacket.The material of jacket is PE or LSZH.


FEATURES


Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs;
Has good mechanical properties and temperature performance;
The loose tube material itself has good hydrolysis resistance and high strength;


PERFORMANCE

Type Max.Attenuation Tensile test Crush test Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYTC8S 0.36dB/km 0.22dB/km 6000N 3000N 3000N 1000N 20D

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
