Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A
Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A
Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A
Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYTZA53-72
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication outdoor
Type :
SM Fibe
Connection Structure :
Stranded loose tube
Core :
72Cores
Fiber Model :
G652D or G657A
Loose tube Material :
PBT(high quality) Loose tube
Armored :
Aluminum tape and steel wire
Sheath Material :
PE(Double jacket)
Length :
2-4km/Drum or Customized
Transport Package :
Wooden Reel
Description

Metallic Strength Member Double Jacket Outdoor Fiber Optic Cable Aluminum Armor

DESCRIPTION

Loose tube design, metallic central strength member, SZ stranded core filled with gel, longitudinal wrapped Aluminum Tape, inner PE sheath, galvanized steelwire armored, outer PEsheath


FEATURES

low transmission attenuation and dispersion.

Reasonable design, precise control of excess length of fibers in the loose tube and optimum cabling process provides the cable excellent mechanical and environmental properties.

The SZ-stranded, loose tube design isolated fibers from installation and environmental rigors.
The water blocking gel filled core design provides the cable excellent water- proof performance and moisture-resistance, with smaller size.

The steel wire armored construction provides good mechanical protection.


APPLICATIONS

Direct burial/ Underwater


PERFORMANCE

Fiber core Nominal Diameter (mm) Nominal Weight
(kg/km)		 Max Fibers
per Tube		 Max No. of
(Tubes+fillers)		 Allowable Tensile
Load (N)		 Allowable Crush
Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 13.2 162 6 5 3000 1000 3000 1000
32~48 13.8 175 8 6 3000 1000 3000 1000
50~72 14.6 205 12 6 3000 1000 3000 1000
74~96 16 230 12 8 3000 1000 3000 1000
98~144 17.6 285 12 12 3000 1000 3000 1000
>144 Available upon customer's request

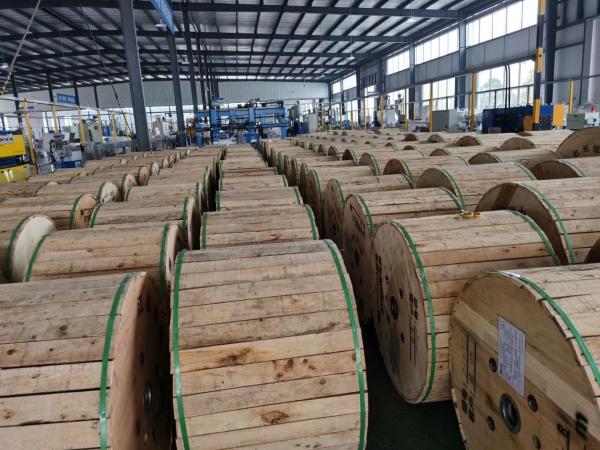

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A

Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A
Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A
Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A
Metallic 72Cores Double Jacket Outdoor Armored Fiber Optic Cable Aluminum Armor G657A
