GYTZA53 48 Metallic Strength Member Outdoor Fiber Optic Cable Types GYTZA53
GYTZA53 48 Metallic Strength Member Outdoor Fiber Optic Cable Types GYTZA53
GYTZA53 48 Metallic Strength Member Outdoor Fiber Optic Cable Types GYTZA53
GYTZA53 48 Metallic Strength Member Outdoor Fiber Optic Cable Types GYTZA53
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYTZA53-48
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication Telecommunication
Type :
SM Optical Fiber
Connection Structure :
Stranded loose tube
Core :
72Cores
Fiber Model :
G652D
Loose tube Material :
PBT tube
Armored :
Steel and Aluminum tapy armored
Sheath Material :
PE(Double jacket)
Length :
2-4km/Drum
Transport Package :
Wooden Reel or Customized
Description

Metallic Strength Member Aluminum Armored Outdoor Fiber Optic Cable GYTZA53

DESCRIPTION

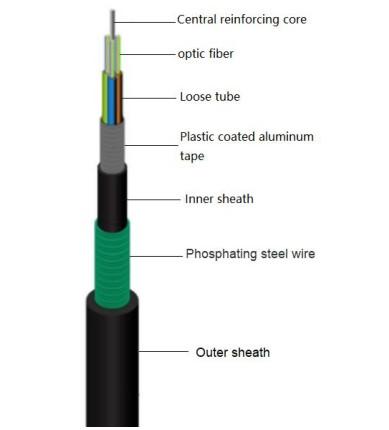

The fibers, ∅250µm colored fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with PE for cable with high fiber count, locates in the center of core as metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Ployethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin flame-retardant inner sheath, which is filled with jelly to protect it from water ingress. Ater a corrugated steel tape armor is applied, the cable is completed with a flame-retardant outer sheath.


FEATURES

Good mechanical and temperature performance and flame-retardant property;

High strength loose tube that is hydrolysis resistant;

Special tube filling compound ensure a critical protection of fiber;

Crush resistance and flexibility;

The following measures are taken to ensure the cable water tight: steel wire used as central strength member; 100% cable core filling; loose tube filling compound; APL moisture barrier; PSP enhancing moisture barrier; Water-blocking material.


APPLICATIONS

Duct

Aerial

Direct buried


PERFORMANCE

Fiber core Nominal Diameter (mm) Nominal Weight
(kg/km)		 Max Fibers
per Tube		 Max No. of
(Tubes+fillers)		 Allowable Tensile
Load (N)		 Allowable Crush
Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 13.2 162 6 5 3000 1000 3000 1000
32~48 13.8 175 8 6 3000 1000 3000 1000
50~72 14.6 205 12 6 3000 1000 3000 1000
74~96 16 230 12 8 3000 1000 3000 1000
98~144 17.6 285 12 12 3000 1000 3000 1000
>144 Available upon customer's request

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
