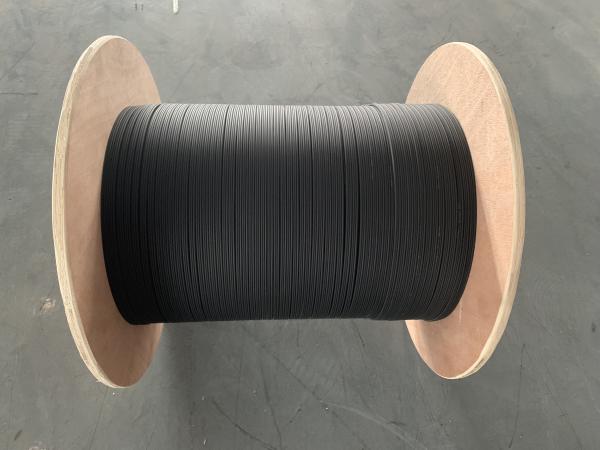

GJXH 2 G657A2 Indoor FTTH Drop Cable Standard Single Mode Fiber 1km
GJXH 2 G657A2 Indoor FTTH Drop Cable Standard Single Mode Fiber 1km
GJXH 2 G657A2 Indoor FTTH Drop Cable Standard Single Mode Fiber 1km
GJXH 2 G657A2 Indoor FTTH Drop Cable Standard Single Mode Fiber 1km
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GJXH-2
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
50000KM per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
FTTH drop cable
Core :
2cores
Application :
Communication Indoor building wiring
Fiber Model :
G657A2 G657A1
Strength Member :
Steel wire or FRP
Sheath Material :
LSZH
Allowed Lateral Pressure :
>1000(N/100mm)
Allowed Tensile Strength :
1000N<10000N
Length :
1-3km/Drum
Packing :
Carton+Pallet
Description

Single Mode Outdoor To Indoor Fiber Optic Cable Steel Strength Member Drop Cable 2Cores

Description

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.


Features

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

2. Simple structure, light weight and high practicability;

3. Novel flute design, easily strip and splice, simplify the installation and maintenance;

4. Low smoke, zero halogen and flame retardant sheath.


Applications

Indoor building wiring and end users directly cabling

Performance

Type

Max.Attenuation

Tensile strength

Crush resistance

Min.Bending radius(Dynamic)

1310nm

1550nm

Short term

Long term

Short term

Long term

GJXH-2

0.36dB/km

0.25dB/km

80N

40N

1000N

500N

40.0×Cable-φ

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
