Single Mode PBT Overhead Self Supporting Fiber Optic Cable GYXC8Y 12 Cores
Single Mode PBT Overhead Self Supporting Fiber Optic Cable GYXC8Y 12 Cores
Single Mode PBT Overhead Self Supporting Fiber Optic Cable GYXC8Y 12 Cores
Single Mode PBT Overhead Self Supporting Fiber Optic Cable GYXC8Y 12 Cores
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYXC8Y-12
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Type :
Single-mode Fiber
Connection Structure :
Fig8 Self-Supporting
Core :
12cores
Fiber Model :
G652D or G657A
Loose tube Material :
PBT(high quality）
Sheath Material :
HDPE MDPE
Length :
2-4km/Drum
Packing :
Wooden tray
Description

Single Fiber Overhead Fig8 Self Supporting Fiber Optic Cable 12 24 48 72Cores

DESCRIPTION

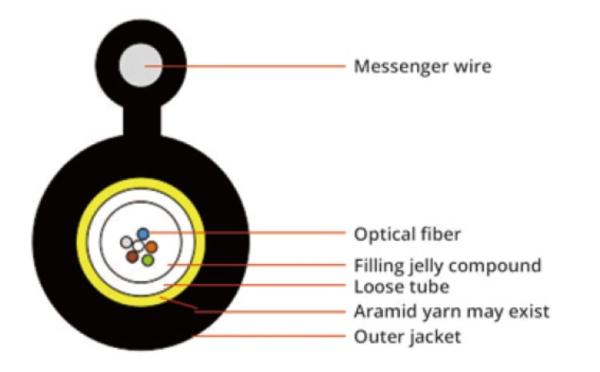

This product is a central tube type structure of figure 8 cable. The optical fiber is put into a loose tube made of high modulus material, the loose tube is filled with waterproof compound, and the loose tube is filled with water blocking material to ensure the longitudinal water resistance of the optical cable, and the outer sheath For PE material.

FEATURES

1. Lighter and small diameter;
2. Excellent bending performance;
3. Excellent lateral pressure resistance,mechanical and temperature performance.

APPLICATIONS

The kind of cable is suitable for installation air-blowing.


PERFORMANCE

Type Max.Attenuation Tensile test Crush test Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYXC8Y-12 0.36dB/km 0.22dB/km 1000N 300N 1000N 300N 20D

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
