8Cores G652D Figure 8 Flex Cable Gyxtc8s Self Supporting Cable
8Cores G652D Figure 8 Flex Cable Gyxtc8s Self Supporting Cable
8Cores G652D Figure 8 Flex Cable Gyxtc8s Self Supporting Cable
8Cores G652D Figure 8 Flex Cable Gyxtc8s Self Supporting Cable
8Cores G652D Figure 8 Flex Cable Gyxtc8s Self Supporting Cable
8Cores G652D Figure 8 Flex Cable Gyxtc8s Self Supporting Cable
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYTC8S-8
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication and FTTH
Type :
SM optical fiber
Connection Structure :
Fig8 Self-Supporting Central tube
Core :
8cores
Fiber Model :
G652D or G657A
Loose tube Material :
PBT tube
Sheath Material :
HDPE MDPE LSZH
Transport Package :

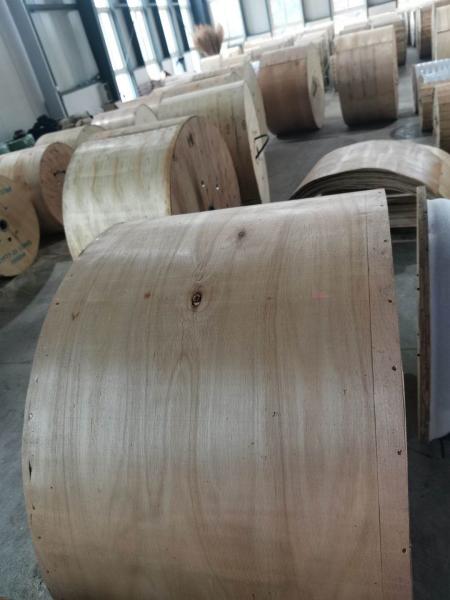

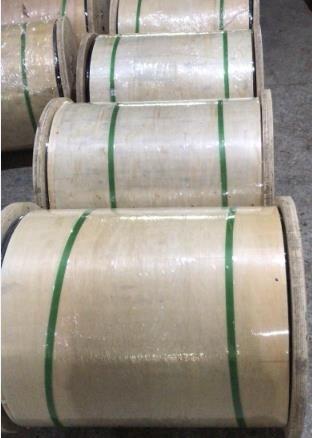

Wooden Reel or Customized
Description

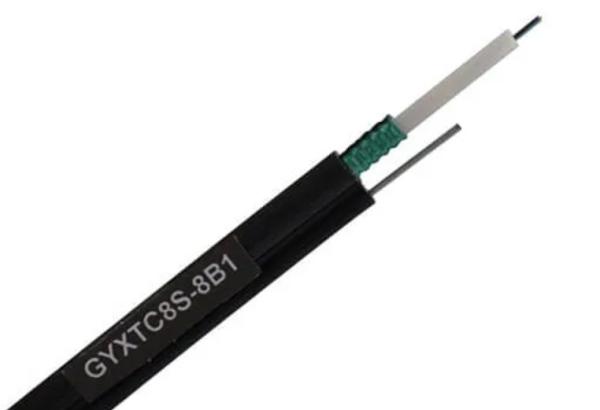

8Cores G652D Figure-8 Self Supporting Fiber Optic Cable GYXTC8S Central Tube

DESCRIPTION

  • Application:
  • Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable ♦Laying method: overhead
  • Working temperature: -40℃~+60℃
  • Bend radius: Static 10 times the cable diameter
  • Dynamic 20 times optical cable diameter

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

FEATURES


Central tube structure, small diameter, light weight, easy to lay

APPLICATIONS


Outdoor wiring, suitable for overhead, pipeline laying


PERFORMANCE

Type Max.Attenuation Tensile test Crush test Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYTC8S-8 0.36dB/km 0.22dB/km 4000N 1000N 1000N 300N 20D

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
