Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed
Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed
Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed
Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYFTCF8Y-12
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication
Type :
SM optical fiber
Connection Structure :
Fig8 Self-Supporting
Core :
12Cores
Fiber Model :
G652D or G657A
Loose tube Material :
PBT(high quality）
Sheath Material :
PE Sheath
Transport Package :
Wooden Reel or Customized
Description

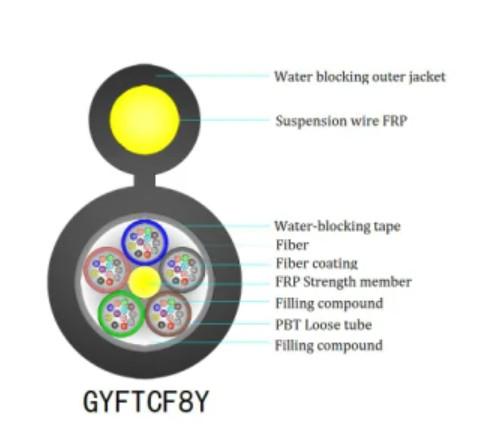

Fig-8 with Non-Metallic Strength Member Self Supporting Fiber Optic Cable G652D

DESCRIPTION

Non-metallic strength member,Outdoor layer filling loose tube,All dielectric fig.8 self-supporting, PE sheath

FEATURES


Full-section water-blocking structure to ensure water-proof and moisture-proof performance of the product;
Non-metallic structure, the product has good compression resistance and flexibility;

APPLICATIONS


Self-supporting overhead laying

PERFORMANCE

Type Max.Attenuation Tensile test Crush test Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYFTCF8Y-12 0.36dB/km 0.22dB/km 1500N 600N 1000N 300N 20D

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed

Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed
Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed
Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed
Fig 8 Self Supporting Fiber Optic Cable G652D Non Metallic Sheathed
