SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
Specifications
Brand Name :
JiangHong or OEM
Model Number :
SFTP CAT5E
Certification :
CE/ISO9001/RoHS
Place of Origin :
Sichuan,China
MOQ :
100 boxes
Price :
US $22-42 / Box
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Western Union
Delivery Time :
5-8Days
Packaging Details :
Carton+Pallet
Application :
Local Communication,Networks
Product name :
SFTP CAT5e
Conductor Type :
Solid or stranded
Material of conductor :
CCA or CU
Insulation :
HDPE
Shield :
Foil+Aluminum Magnesium Braid
Sheath :
LSZH LSFH PVC
Color :
White,gray or customized
Description

SFTP CAT5E 24AWG SFTP LAN CABLE CCA CU Fluke Test 1000ft 305m LSZH Jacket

Description

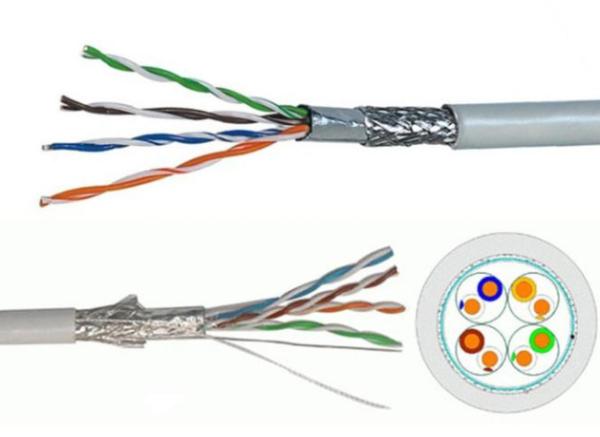

The SFTP CAT5E network cable is used in the wiring between the communication terminal of the work area and the distribution frame between the handovers in the integrated wiring system of the building, and the wiring between the user communication terminal and the distribution frame of the residential integrated wiring system. data communication. Double-layer shielding protection is adopted to make the entire channel more resistant to interference and ensure the correct transmission of data information under high-intensity environmental electromagnetic interference. It is suitable for environments with special high performance requirements such as military, hospitals, banking and financial systems. The standard wiring length is 90 meters, and it is terminated by T568A or T568B connection. The termination piece is a shielded component and grounded to ensure that the channel link is transmitted under shielding protection.

Applications


Indoor / Outdoor, For the military, hospitals, banking and financial systems, etc.

Perfomance
Frequency(MHz) ATT(≤dB/100m) NEXT(≥dB) ELFEXT(≥dB) PS NEXT(≥dB) PS ELNEXT(≥dB)
4 3.8 66.3 56 63.3 53
10 6.0 60.3 48 57.3 45
20 8.5 55.8 42 52.8 40.9
31.25 10.7 52.9 38.1 49.9 35.1
62.5 15.4 48.4 32.1 45.4 29.1
100 19.8 45.3 28 42.3 25
200 29.0 40.8 22 37.8 19
250 32.8 39.3 20 36.3 17
Characteristic Impedance 100±15Ω D-C Resistance Unbalance ≤2%
Delay Skew ≤45ns/100m D-C Resistance ≤9.5Ω/100m
Phase Delay ≤536ns/100m Operating Temperature -20℃~+60℃
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket
SFTP CAT5E 24AWG Network Cable 1000 Ft CCA CU Fluke Test 1000ft 305m LSZH Jacket

​​
