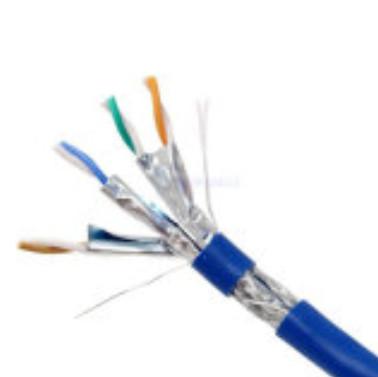

SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring
SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring
SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring
SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
SFTP CAT6 CAT6A
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
30500 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
3050000M per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Pallet
Product name :
SFTP CAT6 CAT6A
Conductor Material :
bare copper or CCA
Conductor Structure :
Solid or stranded
Insulation material :
HDPE
Sheath Material :
PVC PE
Sheath color :
Black or White
Length :
100m/roll 200m/roll 305m/drum
Package :
Carton+pallet
Description

SFTP CAT6 LAN CABLE (Copper conductor)

Double-layer shielding protection is adopted to make the entire channel more resistant to interference and ensure the correct transmission of data information under high-intensity environmental electromagnetic interference. It is suitable for environments with special high performance requirements such as military, hospitals, banking and financial systems. The standard wiring length is 90 meters, and it is terminated by T568A or T568B connection. The termination piece is a shielded component and grounded to ensure that the channel link is transmitted under shielding protection.

Conductor Material Bare Copper
Size 23 AWG
Construction 1/0.560 ± 0.02 mm
Insulation Material Foam-Skin PE
Thickness Average: 0.414 mm Min. at any point: 0.364mm
Material 1.387 ± 0.05 mm
Colors Blue/White-Blue , Orange/White-Orange
Green/White-Green , Brown/White-Brown
Elongation Min. 150 %
Tensile strength Min. 0.51 Kg/mm²
Shield Al-Mylar Type Aluminum foil on outside
Mylar Type
Braid Material Tinned Copper
Coverage Min. 40% (Nom. 48 %)
Sheath Material PVC LSZH
Thickness Average: 0.54 mm Average: 0.54 mm
Min. at any point: 0.40 mm Min. at any point: 0.40 mm
Diameter 7.2 ± 0.3 mm 7.2 ± 0.3 mm
Color Assorted upon request Assorted upon request
Elongation Min. 100% Min. 125%
Tensile strength Min. 1.407 Kg/mm² Min. 0.917 Kg/mm²
168100Aging at 100 for 168Hrs

:50%

Min.elongation retention:50%

:75%

Min.tensile strength retention:75%

Min.elongation

retention:75%

Min.tensile

strength retention:70%

Performance

Electrical Characteristics
Frequency (MHz) ATT(≤dB/100m) NEXT(≥dB) ELFEXT(≥dB)
1 2.04 62.3 60.0
4 4.1 55.3 49.0
10 6.5 47.3 41.0
20 9.3 42.8 35.0
31.25 11.7 39.9 31.1
62.5 17.0 35.2 25.0
100 22.0 32.3 21.0

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring

SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring

SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring

SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring

SFTP CAT6A Ethernet Copper CCA Cat 6 Ethernet Cable 305m Fluke Test LSZH Wiring
