Specifications
Brand Name :
TW-SCIE
Model Number :
GJYXFCH
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
15 Working Days
Supply Ability :
1000 KM PER MOUTH
Packaging Details :
normal package
Application :
Telecommunication, Telecom, Network
Fiber type :
G657A1 or A2, G652D
Fiber count :
2 core
Jacket :
PE or LSZH Outer sheath
Installation :
self- supporting Aerial
Strength member :
Two Steel Wire
Messenger :
Phosphating Steel Wire
Operating Temperature :
-40 Degree ~ +60 Degree
Description
LSZH jacket FTTH Outdoor Indoor GJYXFCH Fiber Optic Drop Cable with Messenger Wire
Description

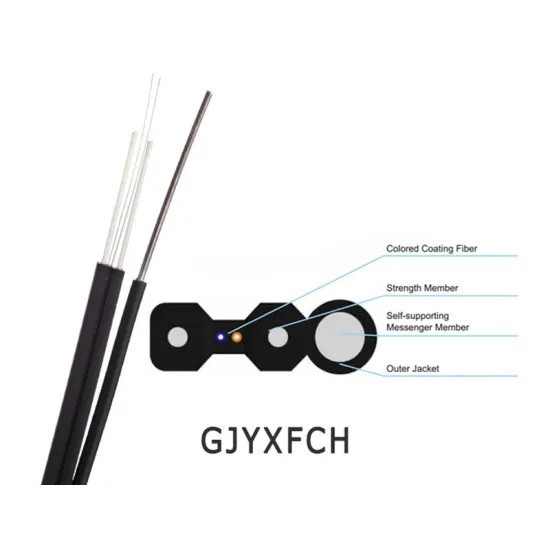

The cable's cross-section, which is a figure-8 shape, is made of a steel wire strength member, and it is self-supported flat drop cable.

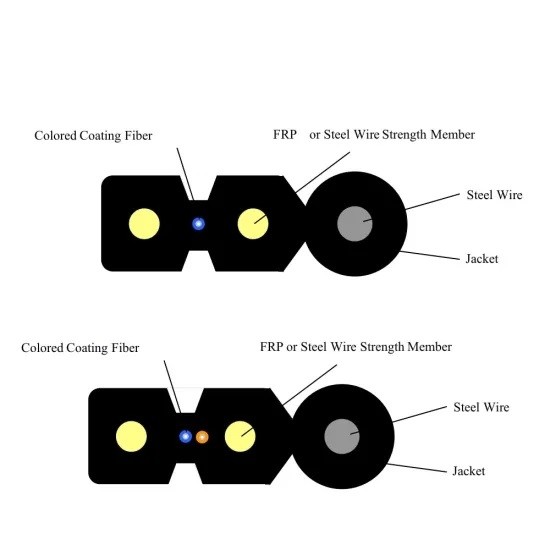

Cable Structure

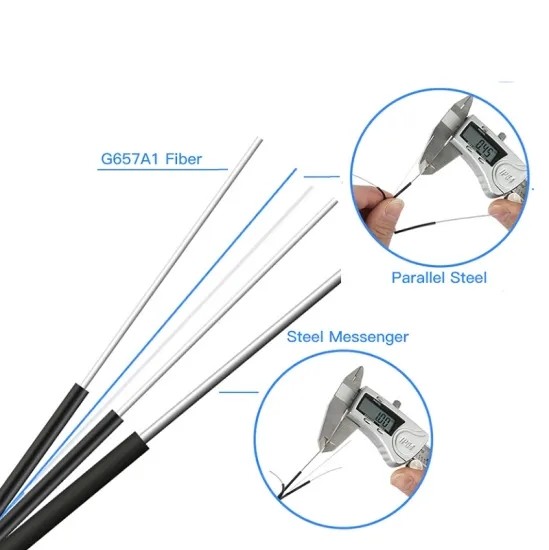

The design of the cross-section is bow-tie type, and it consists of two parallel steel wires as strength members, with G657A1 flex durable fiber in the middle. The outer sheath can be made of PE or LSZH material, and the messenger is a 1.0mm steel wire.

Product Construction
Fiber
250µm colorfiber
Fiberglass reinforced plastic (FRP) or Steel Wire.

Self-supported Member
Steel Wire

Outer Jacket
UV and Flame resistant LSZH

Features
Compact, soft, flexible, install easily.

Applications

This cable is commonly used as an access cable in outdoor-to-indoor customer premises networks. It can also be used as an access building cable in premises distribution systems, particularly for indoor or outdoor aerial access cabling.

Optical Characteristics
Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5

Structure and Technical Specifications

Fiber Count

Cable Diameter

(mm)

Cable Weight

(kg/km)

Tensile Strength

(N/100mm)

Crush Resistance

(N/100mm)
Short Term Long Term Short Term Long Term
1-4 5.2*2.0 18 600 300 2200 1000
6-12 3.0*9.0 27 1200 600 1100 500

Note

This datasheet is for referance, please contact us for more details.

The cable core is made up of colored coating fiber with a diameter of 250μm.

The cable's tensile and crush properties conform to the values specified in the table when FRP and steel strength members are used.
