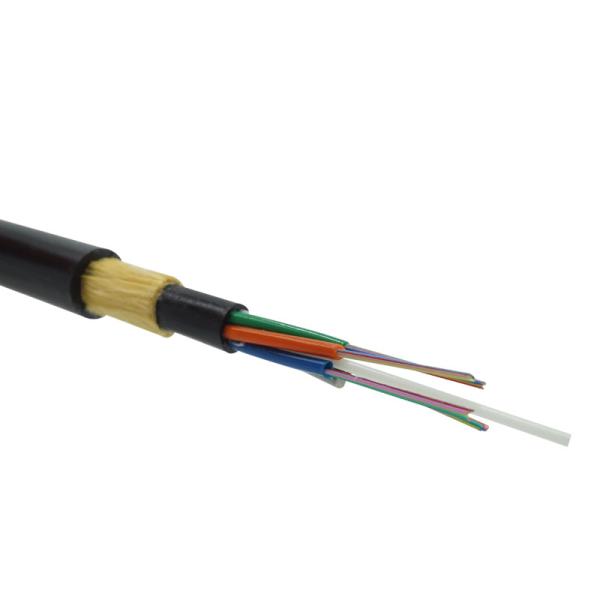

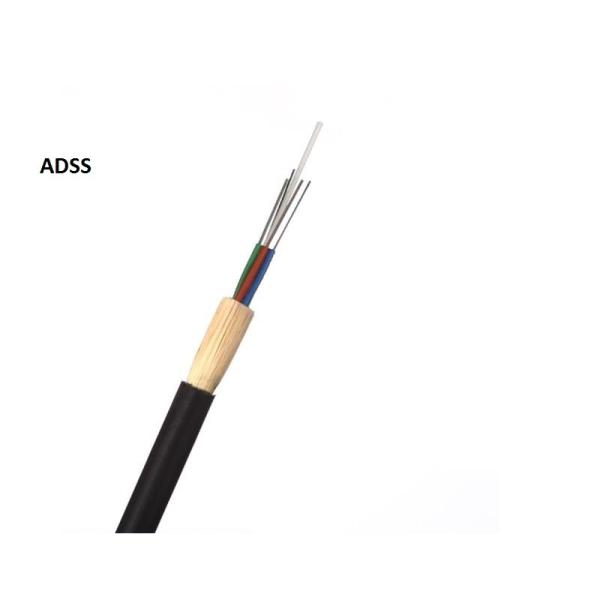

36 Core All Dielectric Self - Support Adss Optical Fiber Cable
36 Core All Dielectric Self - Support Adss Optical Fiber Cable
36 Core All Dielectric Self - Support Adss Optical Fiber Cable
36 Core All Dielectric Self - Support Adss Optical Fiber Cable
36 Core All Dielectric Self - Support Adss Optical Fiber Cable
36 Core All Dielectric Self - Support Adss Optical Fiber Cable
36 Core All Dielectric Self - Support Adss Optical Fiber Cable
36 Core All Dielectric Self - Support Adss Optical Fiber Cable
Specifications
Brand Name :
TW-SCIE
Model Number :
ADSS
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
10 KM
Price :
usd0.4/meter
Payment Terms :
L/C, T/T, Western Union,MoneyGram
Supply Ability :
200km/Day
Delivery Time :
15 Working Days
Packaging Details :
Wooden Drum
Fiber Count :
2-36 Core
Fiber Type :
G652D, single mode
Jacket :
PE or LSZH Outer sheath

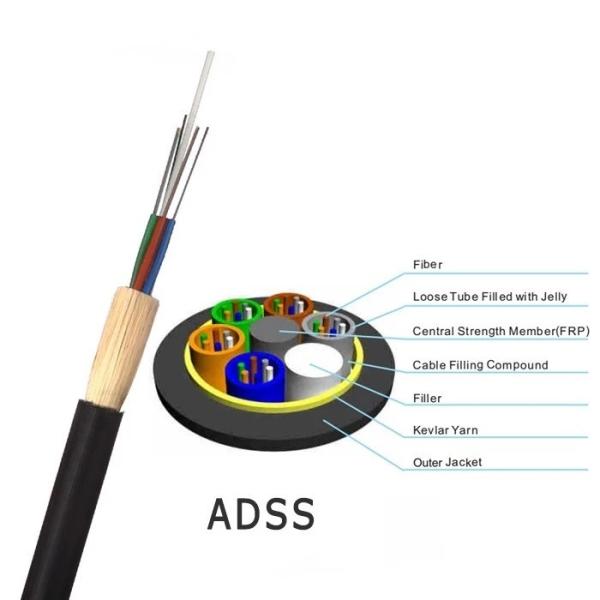

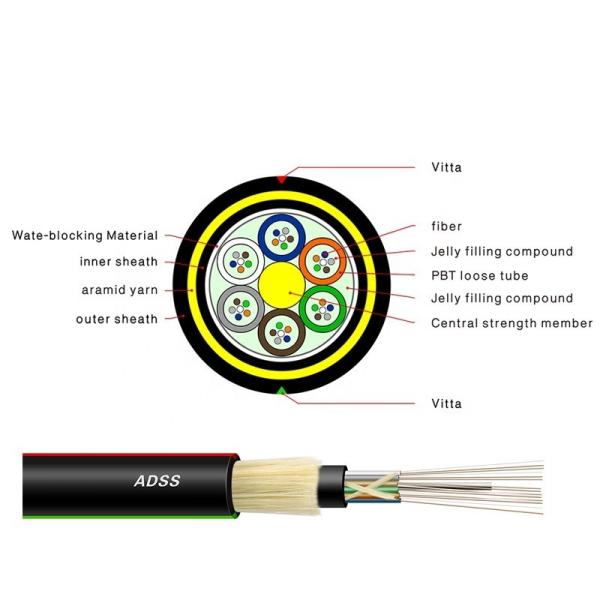

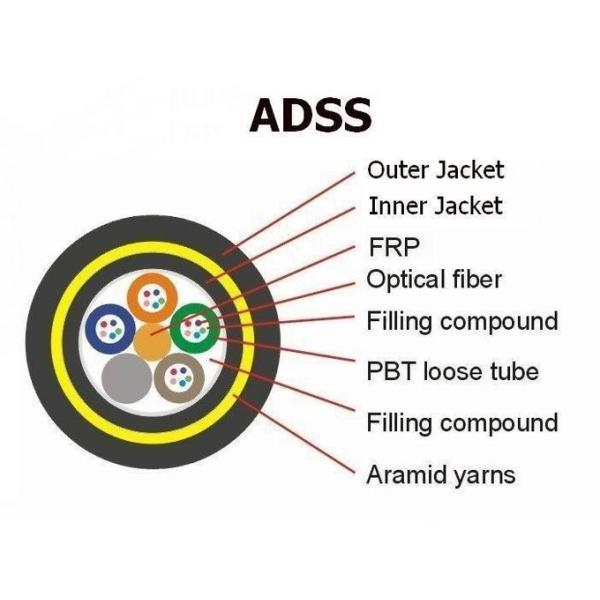

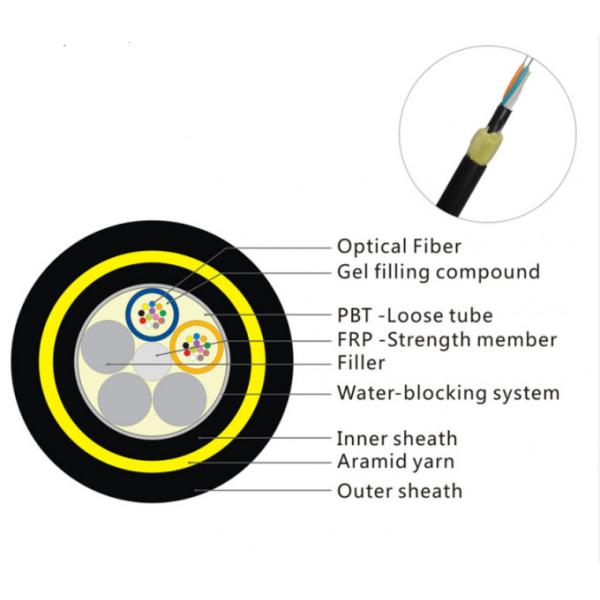

Structure :
Loose Tube
Strength Member :
FRP
Single Armour Material :
Kevlar yarn
Span :
100m
Water Blocking Material :
Water-blacking tape and filling compound
Installation :
aerial
Operating Temperature :
-40 Degree ~ +70 Degree
Description

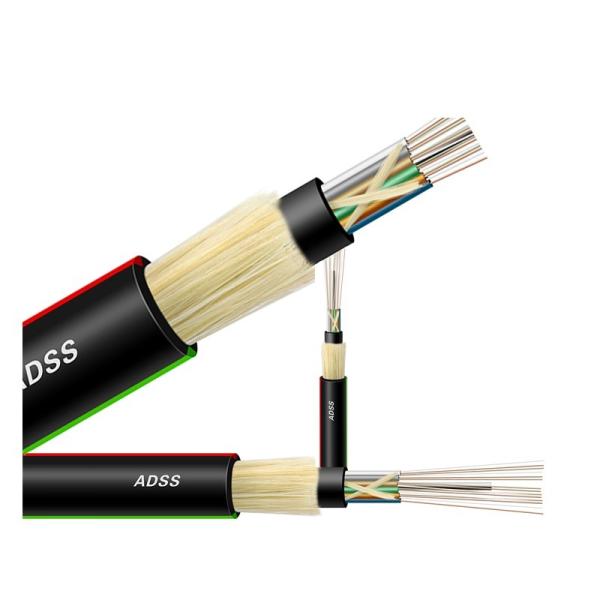

ADSS 2-Core Single-Mode Special All-Dielectric Self-Support Aerial

Fiber Optic Cable

36 Core All Dielectric Self - Support Adss Optical Fiber Cable

36 Core All Dielectric Self - Support Adss Optical Fiber Cable

ADSS cable for high-voltage transmission lines uses power system poles. Non-metallic, self-supporting, safe, cost-effective, minimizes damage, no interference, suits large spans. Popular in power system urban/rural network transformations.

Features

Optical fiber designs include single-mode, multi-mode, and integrated cable.

The aerodynamic performance of the optical cable is superior due to its sleek shape.

The structure of the all-dielectric optical cable is conducive to installation and maintenance.

With a wide temperature adaptability range and small linear expansion coefficient, it meets the requirements of harsh environments.

The leakage resistance voltage is 25KV.

The optical cable has extremely high tensile strength and anti-elastic properties due to torque balance and aramid winding.

Specifications

Elements of ADSS optical cable design include

A. Environmental factors:

a. Wind speed
b. Ice thickness
c. Air temperature d. Topography

B. Factors related to erected power lines:

a. Rated high voltage and maximum operating voltage b. Pole tower type and type and arrangement of conductor and ground wire c. Length of tensile section, standard gear distance (representing gear distance, maximum horizontal gear distance, maximum vertical gear distance) d. The maximum sag of the conductor and ground wire of each tensile section.

Technical specifications for ADSS optical cable

a. Cable core and diameter

b. Optical cable model and weight

c. Tensile strength and compressive strength

d. Vibration and dancing

e. Elongation and excess length

f. Anti-tracking properties of outer sheath

g. Hardware compatibility.

Optical Charateristics

Fiber Type G.652 G.655 50/125^m 62.5/125^m

Attenuation

(+20X)

 850 nm <3.0 dB/km <3.3 dB/km
1300 nm <1.0 dB/km <1.0 dB/km
1310 nm <0.36 dB/km <0.40 dB/km
1550 nm <0.22 dB/km <0.23 dB/km
Bandwidth 850 nm >500 MHz-km >200 Mhz-km
1300 nm >500 MHz-km >500 Mhz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm

36 Core All Dielectric Self - Support Adss Optical Fiber Cable36 Core All Dielectric Self - Support Adss Optical Fiber Cable

36 Core All Dielectric Self - Support Adss Optical Fiber Cable

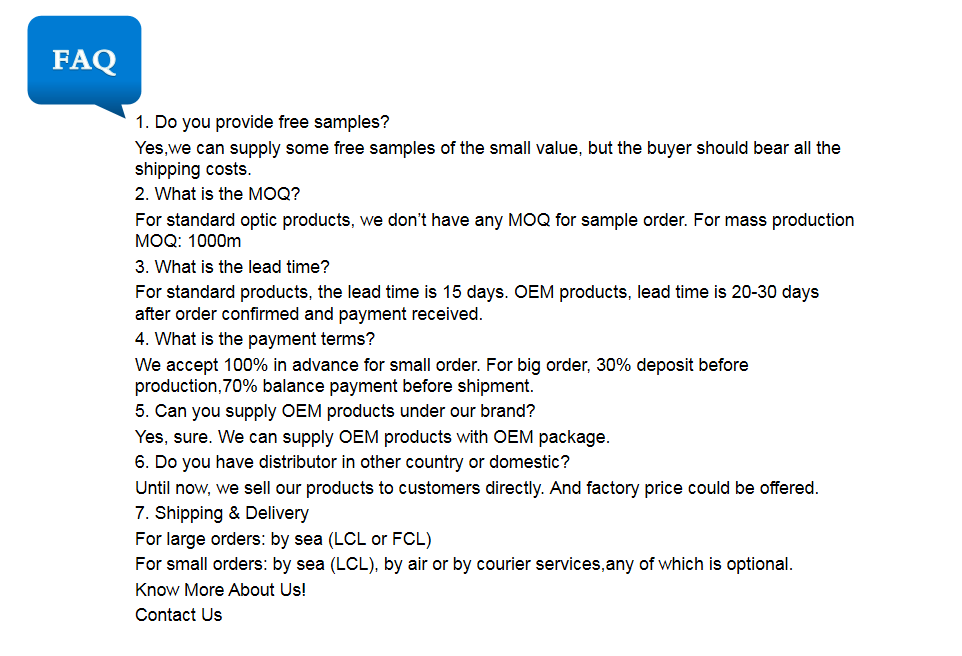

36 Core All Dielectric Self - Support Adss Optical Fiber CableCertification & FAQ

36 Core All Dielectric Self - Support Adss Optical Fiber Cable

36 Core All Dielectric Self - Support Adss Optical Fiber Cable

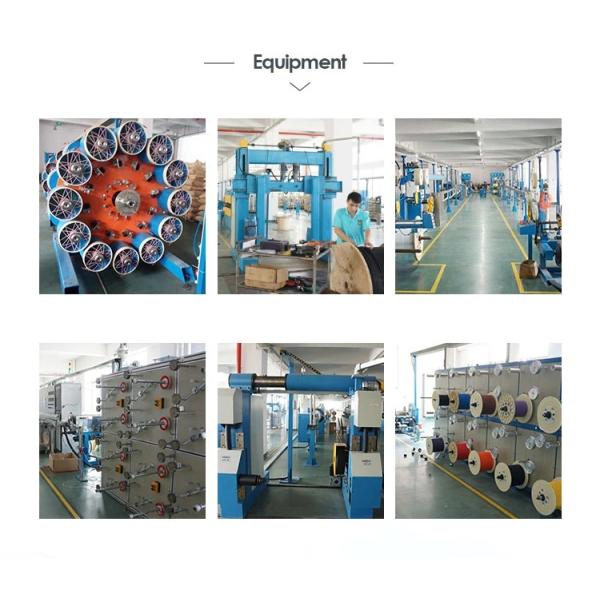

Company Profile

Dongguan TW-SCIE Co., Ltd. is specialized in developing, manufacturing and selling of optical fiber communications products and integrates with independent import and export rights high-tech enterprises.

Dongguan TW-SCIE Co., Ltd is a high-tech enterprise group in China devoted to communications undertakings with our own importers and exporters rights.

Since its founding, high quality products and strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication manufacturer which supplying and engineering service can provide the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise possesses a passel of faithful, intelligent,conscientious talents, while bending ourselves to follow up the worldwide advanced technology. At the same time, we’ve established relationship with many scientific research academies.
