All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
Specifications
Brand Name :
TW-SCIE
Model Number :
GYFTY
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
1 KM
Price :
usd0.20/m
Payment Terms :
L/C, T/T, Western Union,MoneyGram
Supply Ability :
200km/Day
Delivery Time :
15 Working Days
Packaging Details :
Drum
Fiber Count :
2-144 core
Fiber Type :
G652D, single mode
Strength Member :
FRP
Structure :
Loose Tube Stranded
Single Armour Material :
Aramid Yarn
Jacket :
PE or LSZH Outer sheath
Color :
Black
Water Blocking Material :
Water Blocking Tap & Filling Compound
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Installation :
Aerial / Duct
Operating Temperature :
-40 Degree ~ +70 Degree
Description

GYFTY outdoor cable, All-dielectric Loose Tube 12-144 Core FRP

Outdoor Fiber Optical Cable with FRP

All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath

Description

Small, lightweight Loose Tube Single Jacket All Dielectric cables designed for duct and aerial installation. The cable core has FRP and water blocking fillers, with an inner polyethylene layer for added protection.

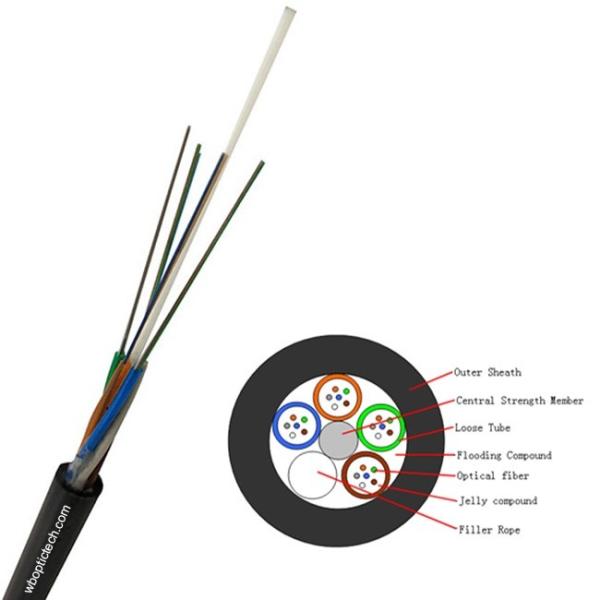

Structure​

Once coated optical fiber is protected by a loose tube.

The loose tube is twisted around the reinforcement.

The reinforcement is located in the center of the optical cable.

Features

"SZ" bidirectional layer twisting technology is employed.

Water blocking ointment is filled step by step to ensure full section water blocking.

Steel (aluminum) belts exhibit reliable bonding and high strength without cracking when twisted.

Fiber length control is stable.

The cable has almost zero additional attenuation and unchanged dispersion value after formation.

The cble boasts excellent environmental performance and is applicable in a temperature range of -10℃ to +70℃.

It can accommodate up to 288 fibers.

The loose tube gel-filled construction provides superior fiber protection.

The cable features an all dielectric structure and a UV and moisture-resistant design.

Applications

Suitable for various laying methods, including overhead, pipeline, and direct burial.

Ideal for both backbone and access applications.

Can be installed in ducts or lashed/aerial configurations.
High-power area, overhead

All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath

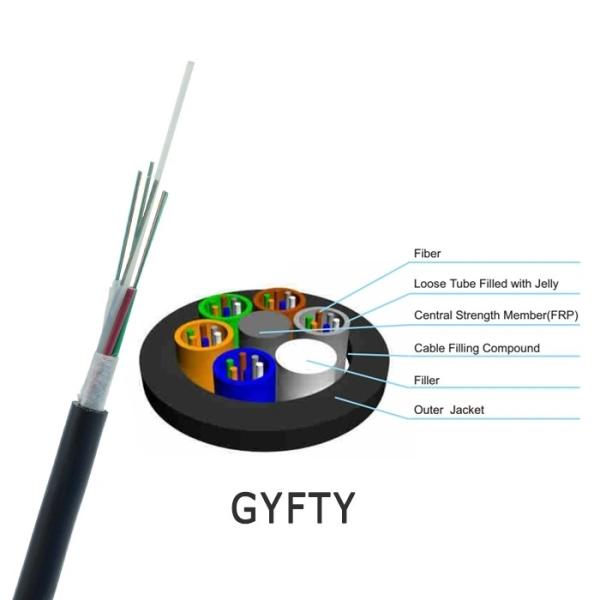

Structure characteristics

Completely non-metallic

Non-metallic center reinforcement

Reinforcement around glass fiber or aramid fiber

Polyethylene outer sheath

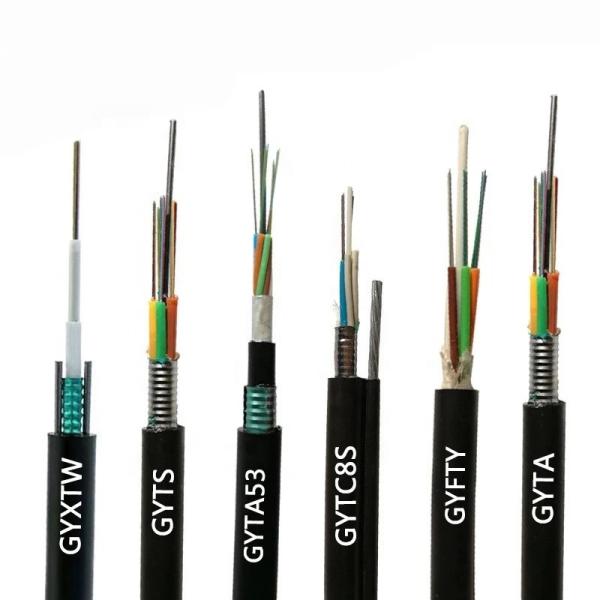

Note: It is also possible to design different structures according to the requirements of users on the environmental performance and transmission capacity of optical cables, such as: GYFTA, GYFXTY, GYFDTZA, etc.

Performance characteristics
No metal structure, excellent anti-electromagnetic, lightning performance, anti-static

Scope of GYFTY optical cable


Long-distance communication, inter-office communication and optical cable entry

Especially suitable for occasions with severe power system, multiple lightning and electromagnetic interference, can be used to introduce optical cable

Optical Charateristics

No. of cable
4
8
12
24
48
72
144
Fiber Model
G.652D
Design(StrengthMember+Tube&Filler)
1+5
1+6
1+12
Central Strength Member
Material
FRP
Diameter(±0.05)mm
1.5
2.0
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
2.0
Thickness(±0.03)mm
0.30
0.32
The Max.Core NO./Tube
4
6
12
Filler Rope
Material
LDPE
Colour
White
Diameter(±0.06)mm
1.7
2.0
Water Blocking layer(Material)
Flooding Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter
8.3
8.9
9.4
13.2
Cable Weight
55
65
75
160
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

 Max Fiber
Per Tube		 Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~36 10.2 85 6 6 1500 600 1000 300
38~72 11.1 100 12 6 1500 600 1000 300
74~96 12.6 130 12 8 1500 600 1000 300
98~120 14.1 162 12 10 1500 600 1000 300
122~144 15.9 204 12 12 1800 600 1000 300
146~216 15.9 205 12 18(2 layers) 2200 600 1000 300
>144 Available upon customer request
Item
Specification
Fiber type
Single mode
Fiber material
Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm
≤0.36 dB/km
≤0.32 dB/km
≤0.22 dB/km
≤0.30 dB/km
Point discontinuity
≤0.05 dB
Cable cut-off wavelength
≤1260 nm
Zero-dispersion wavelength
1300 ~ 1324 nm
Zero-dispersion slope
≤0.092 ps/(nm².km)
PMDQ (Quadrature average*)
≤0.2 ps/km½
Mode field diameter @ 1310 nm
9.2±0.4 um
Core / Clad concentricity error
≤0.5 um
Cladding diameter
125.0 ± 0.7 um
Cladding non-circularity
≤1.0%
Primary coating diameter
245± 10 um
Proof test level
100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm
0.1 dB/km

All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath

All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer SheathAll Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
Related Products
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath

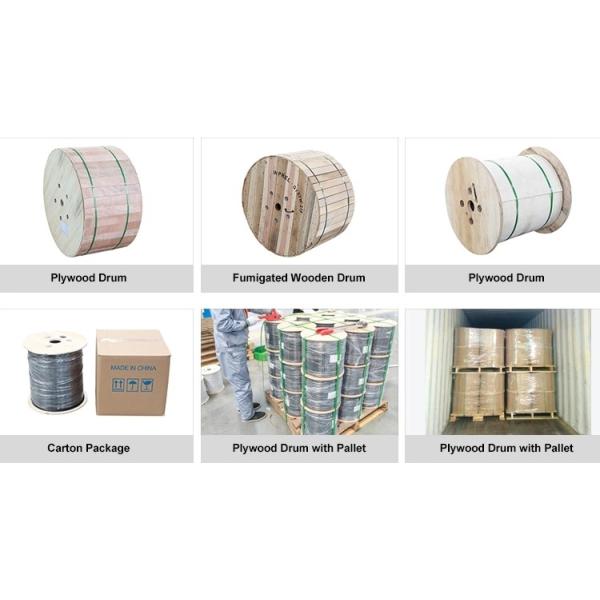

Packing & Shipping
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
FAQ & Certification
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath

Company Profile

Dongguan TW-SCIE Co., Ltd.is located in Qingxi Town, a beautiful industrial town in Dongguan City, Guangdong Province, and also have other place in Deyang Sichuan .covering an area of more than 10,000 square meters, with more than 200 employees. Since its inception, the company adheres to the concept of "continuous innovation, the pursuit of excellence", the integrity of the enterprise, accurate positioning, long-term commitment to the development of optical fiber communication products and market expansion. Nowadays, Tewang has a modern office environment, advanced production equipment and a group of high-quality scientific research and technical personnel and management personnel, and has become a fiber optic communication products research and development, production, sales and network engineering as a whole, and has the right to import and export the emerging high-tech enterprises.
