FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
FRP 122-144 core GYFTY G652D Outdoor Fiber Optic Cable
Specifications
Brand Name :
TW-SCIE
Model Number :
GYFTY
Certification :
ROHS REACH SGS ISO
Place of Origin :
DongGuan TW
MOQ :
1 KM
Price :
usd0.20/m
Payment Terms :
L/C, T/T, Western Union,MoneyGram
Supply Ability :
200km/Day
Delivery Time :
15 Working Days
Packaging Details :
Drum
Fiber Count :
2-144 core
Fiber Type :
G652D, single mode
Jacket :
PE or LSZH Outer sheath
Color :
Black
Structure :
Loose Tube Stranded
Strength Member :
FRP
Single Armour Material :
Aramid Yarn / PE
Water Blocking Material :
Water Blocking Tap & Filling Compound
Installation :
Aerial / Duct
Operating Temperature :
-40 Degree ~ +70 Degree
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Description

GYFTY 144-Core Hybrid Fiber Optic Copper Wire Composite Cables for FTTA

  • This cable is suitable for use in long-distance communication, inter-office communication, and optical cable entry applications.
  • It is particularly well-suited for environments with severe power system issues, multiple lightning strikes, and high levels of electromagnetic interference, and can be used to introduce optical cable.

Description

The Loose Tube Single Jacket All Dielectric cables, which are intended for duct and aerial (lashed) installation, are lightweight with a small diameter. The cable core's center is made of glass fiber-reinforced plastic (FRP), around which the loose tube (and filler rope) is twisted to create a compact and circular cable core. Water-blocking fillers are used to fill the gaps in the cable core. The cable also features a layer of polyethylene on the inside.

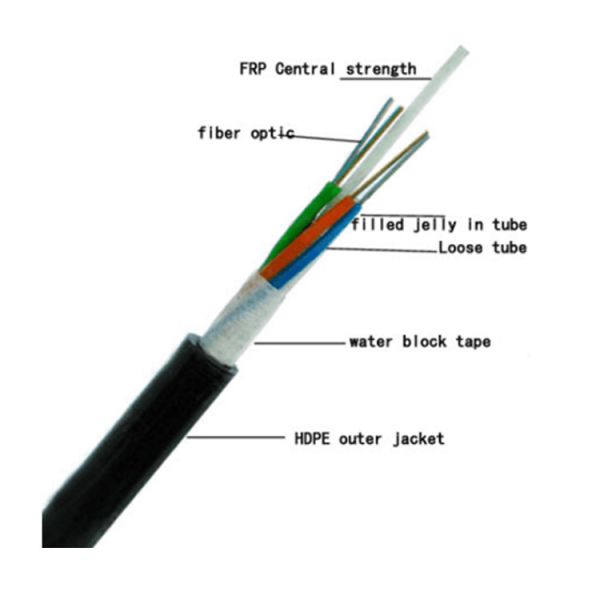

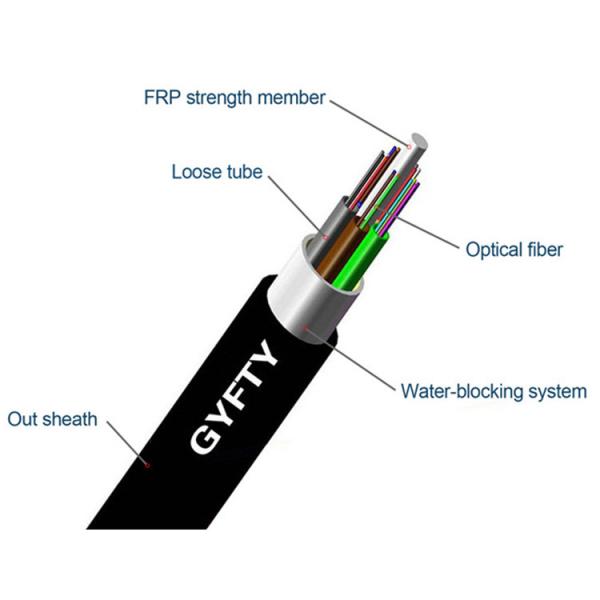

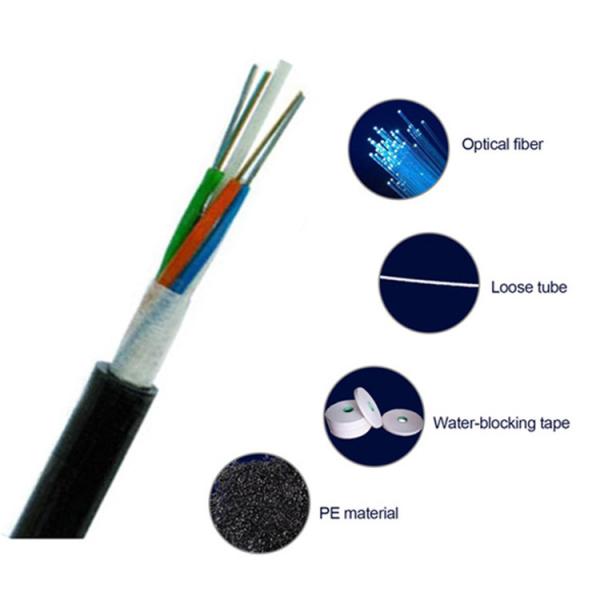

Structure​

The optical fiber, once coated, is protected by a loose tube.

This loose tube is twisted around the reinforcement, which is located in the center of the optical cable.

Features

The technology of "SZ" bidirectional layer twisting is adopted.

Water-blocking ointment is applied step by step to achieve full-section water blocking.

Steel (or aluminum) belts have reliable bonding, high strength, and do not crack when twisted.

Stable fiber length control is maintained.

After the cable is formed, the additional attenuation of the optical fiber is almost zero, and the dispersion value remains unchanged.

The cable boasts excellent environmental performance and is suitable for use within a temperature range of -10℃~+70℃.

This cable can support up to 288 fibers and features a loose tube gel-filled construction that provides superior fiber protection. Its all-dielectric structure and UV and moisture-resistant design ensure durability.

Applications


This cable is suitable for a variety of laying methods, including overhead, pipeline, and direct burial. It is appropriate for use in both backbones and access networks and can be installed in ducts or lashed/aerial configurations.

Applicable laying method

This cable is suitable for use in high-power overhead areas.

Overhead installations in high-power areas require a cable with specific characteristics.

Characteristics

This cable is entirely non-metallic.

It features a non-metallic center reinforcement around either glass fiber or aramid fiber.

The outer sheath is made of polyethylene.

Note: Different cable structures, such as GYFTA, GYFXTY, and GYFDTZA, can be designed to meet users' requirements for environmental performance and transmission capacity.

Performance characteristics


No metal structure, excellent anti-electromagnetic, lightning performance, anti-static

Scope of GYFTY optical cable

Optical Charateristics

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

 Max Fiber
Per Tube		 Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~36 10.2 85 6 6 1500 600 1000 300
38~72 11.1 100 12 6 1500 600 1000 300
74~96 12.6 130 12 8 1500 600 1000 300
98~120 14.1 162 12 10 1500 600 1000 300
122~144 15.9 204 12 12 1800 600 1000 300
146~216 15.9 205 12 18(2 layers) 2200 600 1000 300
>144 Available upon customer request
