Specifications
Brand Name :
TW-SCIE or OEM
Model Number :
ADSS
Certification :
SGS IOS9000
Place of Origin :
Dongguang China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20km/day
Delivery Time :
in 3 weeks
Packaging Details :
2-4km/wooden drum
Strength Member :
Aramid Yarn
Fiber type :
G657A2
Type :
ADSS
Fiber count :
2-288
Jacket material :
PE
Packing :
2-4km/wooden drum
Operating temperature :
-40 ~ +60 C
Custom :
Customized available
Application for :
Aerial
Life Expectancy :
Over 30 years
Oem :
YES
Structure :
multi core
Description

ADSS 2-144 Core All-Dielectric Self-Supporting Optical Fiber Cable Manufacturers The Floor Price,Outdoor Fiber Optic Cable

1. ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

2. The tubes are filled with a water-resistant filling compound.

3. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

4. After the cable core is filled with filling compound.

5. it is covered with thin PE (polyethylene) inner sheath.

6. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteriatic

1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
4.Large span lengths and the largest span is over 1000m
5. Good performance of tensile strength and temperature
6. The design life span is 30 years

Parameter

Cable Type Fiber Count Tubes Fillers

Cable Diameter

mm

 Cable Weight kg/km Max working tension kN Strength member CSA mm2 Modulus of elasticity kN/mm2
ADSS 2 1 4 12.5 136 1.5 4.6 7.6
ADSS 4 2 3 13.0 142 2.25 7.6 8.3
ADSS 8 3 2 13.3 148 3.0 10.35 9.45
ADSS 10 4 1 13.6 156 3.6 13.8 10.8
ADSS 12 5 0 13.8 159 4.5 14.3 11.8
ADSS 14 6 0 14.5 177 5.4 18.4 13.6
ADSS 16 4 1 14.9 185 6.75 22.0 16.4
ADSS 20 5 0 15.1 193 7.95 26.4 18.0
ADSS 24 6 0 15.5 201 9.0 32.2 19.1
ADSS 28 7 1 15.6 208 10.5 33.0 19.6
ADSS 32 8 0 16.3 226 12.75 40.0 21.0
ADSS 36 9 1 16.8 242 15.45 48.0 24.0
ADSS 42 10 0 17.2 253 16.2 51.0 25.1
ADSS 48 11 1 17.9 266 18.0 58.8 25.1

Ref.outer diameter
(mm)		 Ref.weight

kg/km Weight		 Ref.daily max.working tension

(kN)

 Max allowable working tension
(kN)		 Break strength

(kN)		 Strength member CSA

(mm2)		 Modulus of elasticity kN/
(mm2)		 Heat expansion coefficient ×10-6 /k
PE sheath
AT sheath
12.5 125 136 1.5 4 10 4.6 7.6 1.8
13 132 142 2.25 6 15 7.6 8.3 1.5
13.3 137 148 3.0 8 20 10.35 9.45 1.3
13.6 145 156 3.6 10 24 13.8 10.8 1.2
13.8 147 159 4.5 12 30 14.3 11.8 1.0
14.5 164 177 5.4 15 36 18.4 13.6 0.9
14.9 171 185 6.75 18 45 22 16.4 0.6
15.1 179 193 7.95 22 53 26.4 18 0.3
15.5 190 204 9.0 26 60 32.2 19.1 0.1
15.6 194 208 10.5 28 70 33 19.6 0.1
16.3 211 226 12.75 34 85 40 20.1 -0.4
16.8 226 242 15.45 41 103 48 24 -0.5
17.2 236 253 16.2 45 108 51 25.1 -0.8
17.9 249 266 18 50 120 58.8 26.1 -0.8

Optical Characteristic

G.652 G.655 50/125μm 62.5/125μm

Attenuation(+20ºC)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fiber

Competitive Advantages

1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING,FUJIKURA
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service

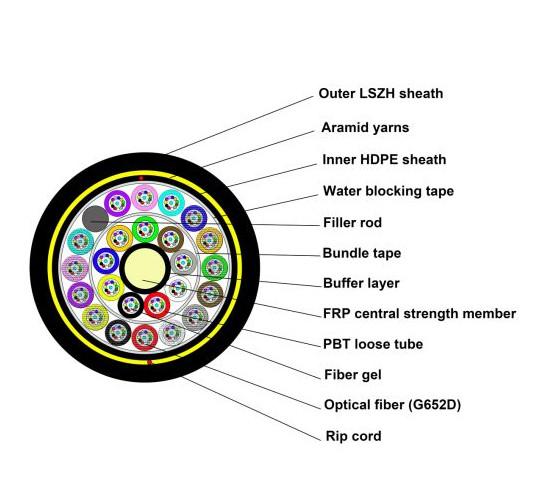

Product Structure


ADSS PE Jacket 2-144 Core All Dielectric Quality and Safety We have implemented a strict and , Outdoor Fiber Optic Cable

Packaging Detail

ADSS 2-144 Core Optical Fiber Cable package are with export wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM. Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cable drum from customers. welcome to contact us!
