1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable
1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable
1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable
1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable
Specifications
Brand Name :
TW-SCIE
Model Number :
GJYXCH
Certification :
CE,RoHS, REACH, ANATEL
Place of Origin :
DONGGUAN China.
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000KM per day
Delivery Time :
Depends on your quantity
Packaging Details :
Wooden drum and carton
type :
single mode
Optical Fiber Type :
G.652D G.657A
Sheath Material :
LSZH
Messenger Material :
Steel Wire
Outer Diameter of Cable :
2.0mm*5.0mm
Fiber Color :
Blue, Orange, Green, Brown...
Jacket Color :
Black, White
Installation Style :
Indoor & Outdoor Aerial Drop Cable
Description

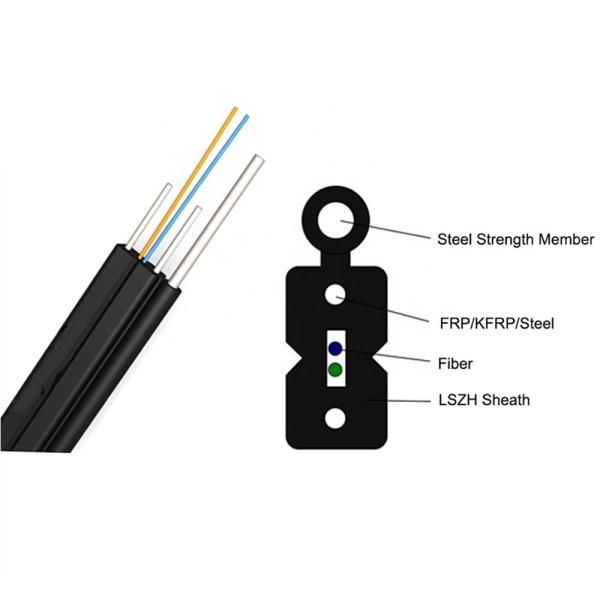

GJYXCH—FTTH Indoor Drop Cable

Feature

1.Soft and bendable, easy to deploy and maintenance.

2.Smaller diameter, Light weight, and high practicability.

3.Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.

4.Environmental protection- Low smoke, zero halogen and flame retardant sheath.

Applications

1. Used in access network or as access cable from outdoor to indoor in customer premises network;

2. Used as access building cable in premises distribution system, especially used in indoor or outdoor.

Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.5 dB/km ≤3.5 dB/km
(+20°C) @1300nm ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.45 dB/km ≤0.50 dB/km
@1550nm ≤0.30 dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

No. Items Unit Specification
G.657A1
1 Mode Field Diameter 1310nm μm 9.0±0.4
1550nm μm 10.1±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
10 Macro-Bending Loss 1turn×10mm dB ≤0.75
radius @1550nm
1turn×10mm dB ≤1.5
radius@1625nm

1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable

1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable

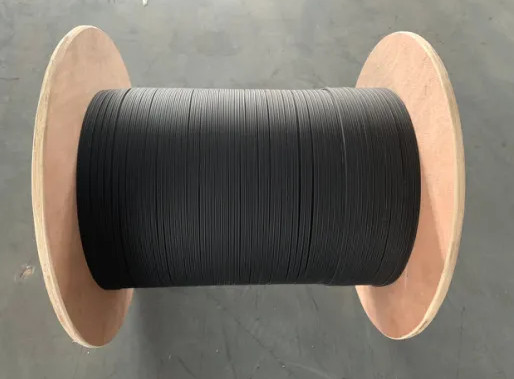

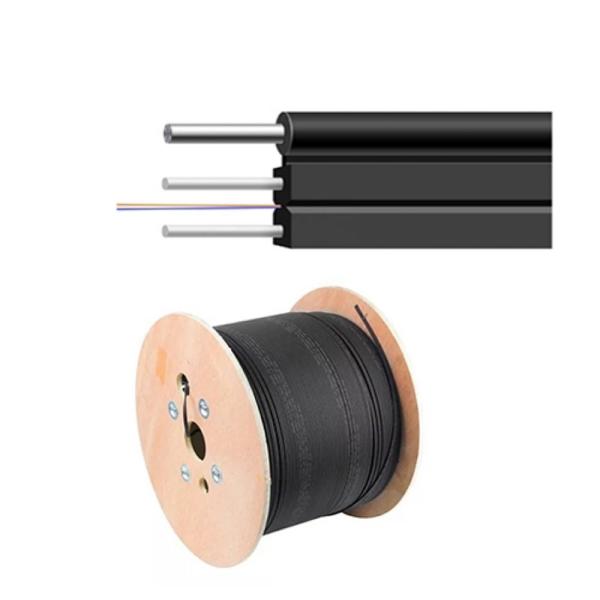

Packing and Shipping


Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers

1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable

1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable

Exhibation

1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable

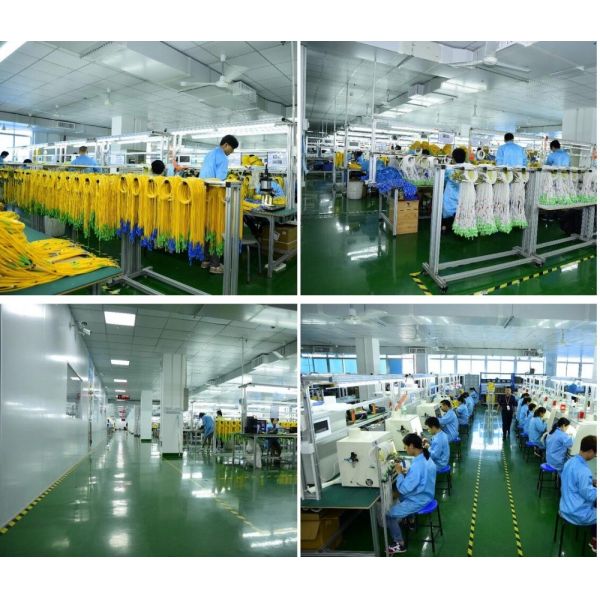

Company Show

1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable

1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable

1,2, 4 Cores GJYXCH FTTH G.657A Indoor favorable price Aerial Drop Cable

Our Quality & Service


DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.


Please feel free to contact us for cooperation and excellent service!
