Specifications
Brand Name :
TW-SIC or OEM
Model Number :
Pigtail
Certification :
CE,ROHS,REACH, ANATEL
Place of Origin :
DongGuan China.
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
5000Pcs /Per Day
Packaging Details :
1PCS/PER BAG
Delivery Time :
15 Working Days
Polish :
UPC,APC
Fiber type :
SM/MM
Connector :
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO
Cable Jacket :
PVC,LSZH,OFNR,OFNP
Description

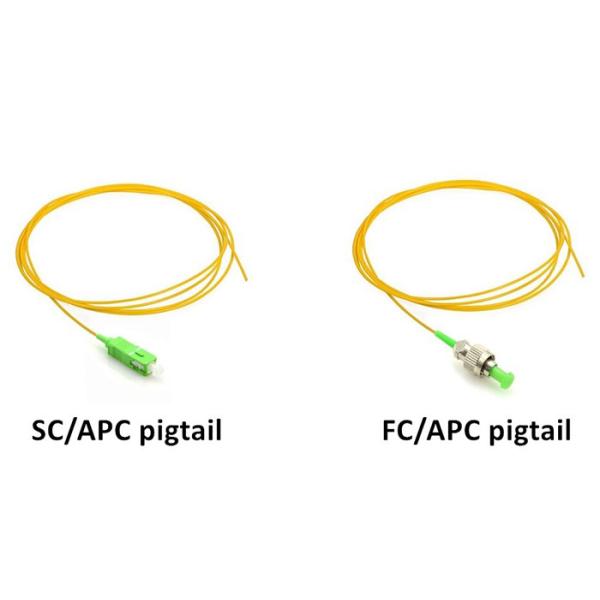

Fiber Optic Single Mode Simplex SC/APC Fiber Optic Pigtail

Single Mode Simplex SC APC Fiber Optic Pigtail with different type of connectors are availableDescription

Fiber optic pigtails offer a rapid means of creating communication devices in the field. They are fashioned, produced, and evaluated in accordance with industrial protocols and performance requirements, ensuring that they fulfill even the most rigorous mechanical and performance specifications.

Features

We offer SC, LC, FC, MU, ST, MT-RJ, and E2000 connectors.

Our polishing meets superior qualified standards for PC, APC, UPC, and SPC.

You have the option of choosing cables with a diameter of φ0.9mm, φ2.0mm, or φ3.0mm.

We have single mode (9125) or multi-mode (50/125 or 62.5/125) fibers available.

We offer fiber bunches, ribbon fan-outs, and pigtails.

Our connectors are available in simplex and duplex configurations.

Our connectors have low insertion loss and high return loss.

Our connectors are highly exchangeable and durable. We welcome customized specifications.

Size Information
Item
SM(Single Mode)
MM(Multimode)
Fiber Cable Type
G652D/G655/G657A1/G657A2
OM1
OM2/OM3/OM4
Fiber Diameter (um)
9/125
62.5/125
50/125
Cable OD (mm)
0.9/1.6/1.8/2.0/2.4/3.0
Endface Type
PC
UPC
APC
UPC
UPC
Typical Insertion Loss (dB)
<0.2
<0.15
<0.2
<0.1
<0.1
Return Loss (dB)
>45
>50
>60
/
Insert-pull Test (dB)
<0.2
<0.3
<0.15
Interchangeability (dB)
<0.1
<0.15
<0.1
Anti-tensile Force (N)
>70
Temperature Range (ºC)
-40~+80

Packing & Shipping & FAQ

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Single Mode Simplex SC APC Fiber Optic Pigtail with different type of connectors are available

Single Mode Simplex SC APC Fiber Optic Pigtail with different type of connectors are available

Company Profile

We are an OEM manufacturer of fiber optic cables.

We use high-quality fiber brands such as YOFC and CORNING.

Our products have received quality certifications such as ISO9001, ROSH, and REACH.

We have collaborated with major telecommunications projects in Vietnam, Thailand, Singapore, Dubai, and others.

TW-SCIE is renowned for its excellent product quality, competitive prices, fast delivery, and exceptional service as a fiber optic cable manufacturer.
