GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments
GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments
GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments
GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments
Specifications
Brand Name :
TW-SCIE or OEM
Model Number :
GYTS
Certification :
ROHS REACH SGS ISO,ANATEL
Place of Origin :
DONG GUAN CHINA
MOQ :
3km
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
200 km per day
Delivery Time :
15 Working Days
Packaging Details :
Customize
Single Armour Material :
Corrugated aluminium tape
Brand Name of Fiber :
Corning, Yofc, Draka, Fujikura
Outer sheath material :
PE
Loose tube material :
PBT or Jelly
Outer Sheath Color :
BLACK
Messenger Material :
Steel Wires
Waterblocking Material :
Water Blocking Tape or Filling Compound
Operating Temperature :
-40 Degree ~ +60 Degree
Description

36/72/96 Core Armoured Duct Fiber Optical Fiber Cable GYTS

GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments


2-288 Core Optical Fiber Cable including outdoor 2-288 Core Optical Fiber Cable, indoor 2-288 Core Optical Fiber Cable, ftth 2-288 Core Optical Fiber Cable.
2-288 Core Optical Fiber Cable Certificate including REACH,ISO9001, SGS, RoHS. 2-288 Core Optical Fiber Cable capacibility 300km/day. We have varity of 2-288 Core Optical Fiber Cable modules, accept custom and supply OEM, ODM services. We have strong sales team, 24 hours supply consult and quotation for you.

GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments

GYTS optic fiber cable Technology Specification

Cable Count Out sheath Weight Minimum allowable Tensile Strength minimum allowable Crush Load Minimum Bending Radius Storage
Diameter (N) (N/100mm) (MM) temperature
(MM) (KG) short term long term short term long term short term long term (°C)
2-60 9.8 116 1500 600 1000 300 20D 10D -20+60
62-72 10.5 146 1500 600 1000 300 20D 10D -20+60
74-96 12.8 174 1500 600 1000 300 20D 10D -20+60
98-120 14.5 209 1500 600 1000 300 20D 10D -20+60
122-216 15.5 271 1500 600 1000 300 20D 10D -20+60
GYTS optic fiber cable Optical Characteristics: :
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fiber

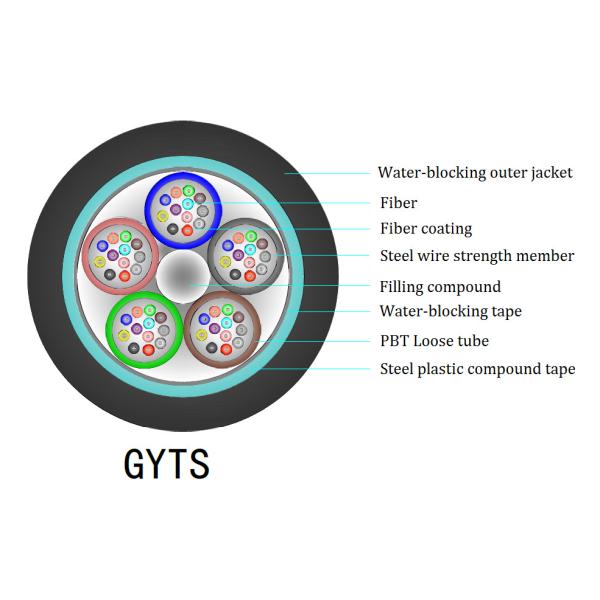

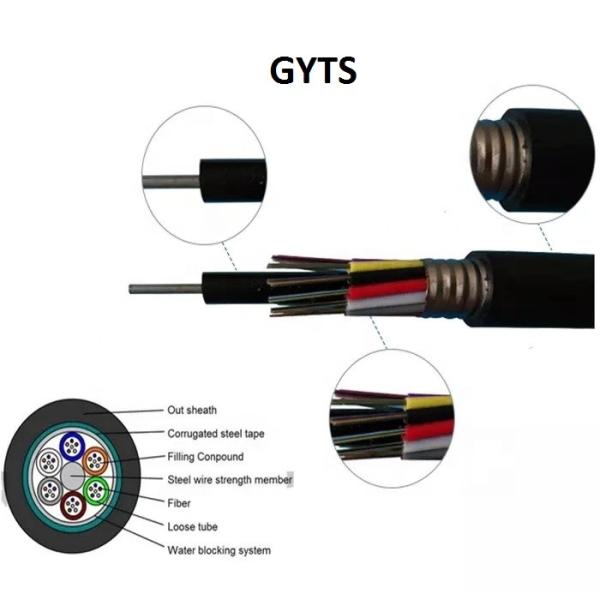

GYTS Fiber Optic Cable Details

GYTS 2-288 Core Optical Fiber Cable Competitive Advantages
1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING,FUJIKURA
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality, competitive prices , fast delivery and good service.

Shipping & Packing &Payment &FAQ

· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.

GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments

GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments

GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipmentsGYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments

Comapny Profile

Dongguan TW-SCIE Co., Ltd. is specialized in developing, manufacturing and selling of optical fiber communications products and integrates with independent import and export rights high-tech enterprises.

Dongguan TW-SCIE Co., Ltd is a high-tech enterprise group in China devoted to communications undertakings with our own importers and exporters rights.

Since its founding, high quality products and strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication manufacturer which supplying and engineering service can provide the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise possesses a passel of faithful, intelligent,conscientious talents, while bending ourselves to follow up the worldwide advanced technology. At the same time, we’ve established relationship with many scientific research academies.

GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments

GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments
GYTS with Water-blocking tape 36 72 96 Core Armored Fiber Optic Cable for connecting communication equipments


Dear Friend,


Thanks for your visiting. We Dongguan TW-SCIE Co.,LTD supply CATV& FTTx products, including Outdoor & indoor 2-288 Core Optical Fiber Cable, Installation tools,Test and inspection equipments, accessories etc...


You are warmly welcome to browse our products showing in Alibaba and also welcome to visit our website.
Any interesting item or have any confusion,please do not hesitate to contact us!
WE LOOKING FORWARD TO HEARING FROM YOU!

Yours sincerity,
DongGuan TW-SICE Co.,Ltd
